SL.NO |
NUMBER |
DESCRIPTION |

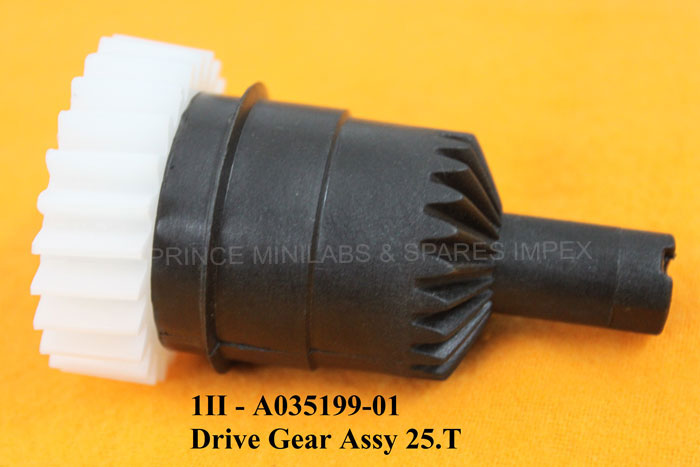

1.II. |
A.035199-01 |
DRIVE GEAR ASSY 25.T. |
1.II.A |
A.035199-01 |
DRIVE GEAR ASSY 25.T. (Full Set) |

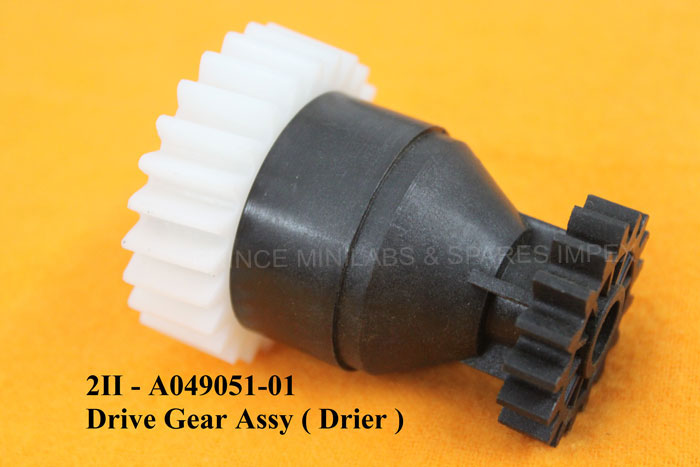

2.II. |
A.049051-01 |
DRIVE GEAR ASSY (DRIER) |

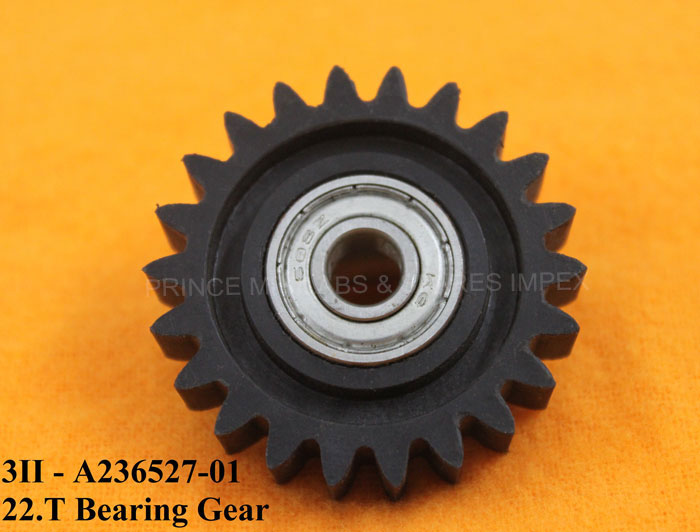

3.II. |
A.236527-01 |
22.T. BEARING GEAR |

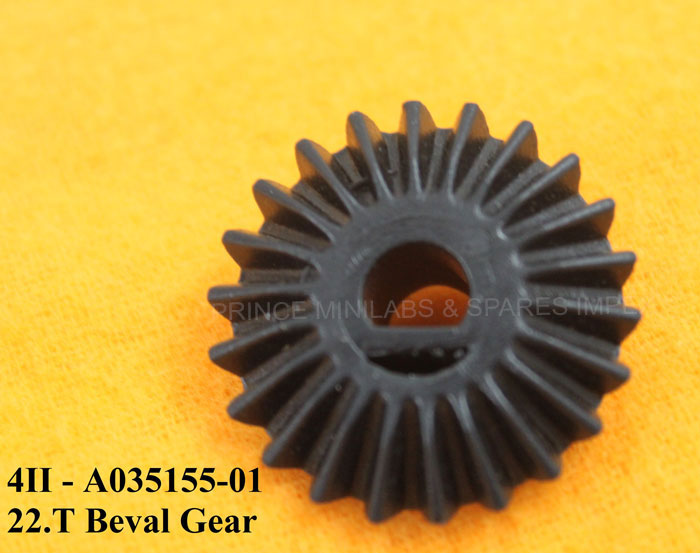

4.II. |
A.035155-01 |
22.T. BEVAL GEAR |

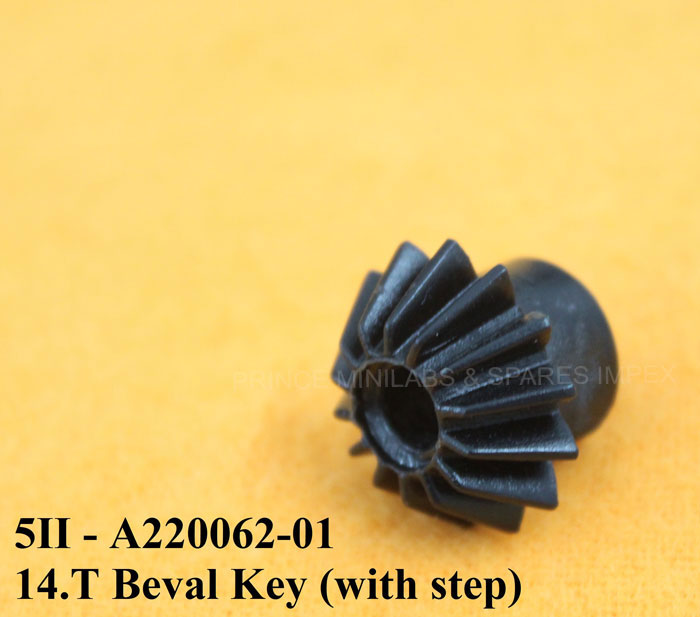

5.II. |
A.220062-01 |
14.T. BEVAL KEY |

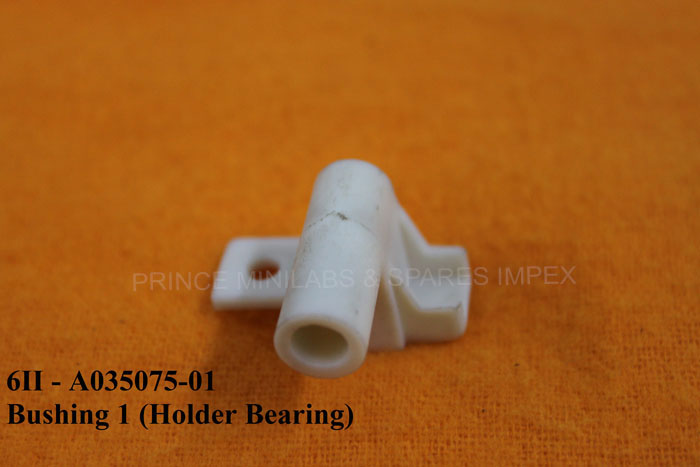

6.II. |
A.035075-01 |
BUSHING I (HOLDER BEARING) |

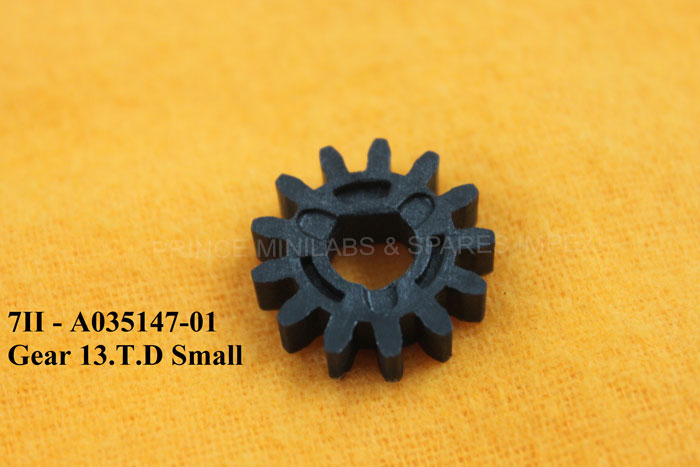

7.II. |
A.035147-01 |
GEAR (13.T.D.)SMALL |

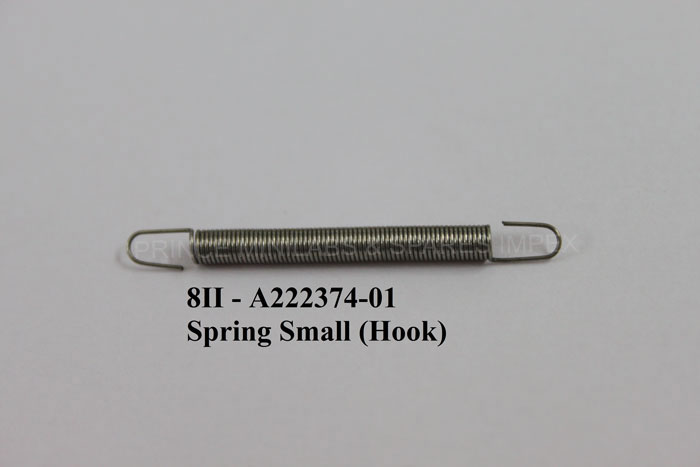

8.II. |
A.222374-01 |
SPRING (HOOK)SMALL |
9.II. |
A.220296-01 |
BUSHING INNER ASSY (BLACK) |
10.II. |
A.035160-01 |
GEAR (33.T.)OVAL |
11.II. |
A.035150-01 |
BUSHING SPRING GROVE |

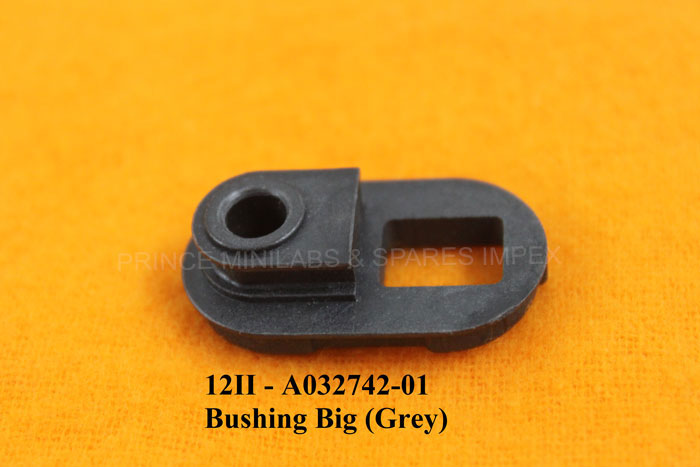

12.II. |
A.032742-01 |
BUSHING -BIG (GREY) (ORIGINAL) |
BUSHING -BIG (GREY) |

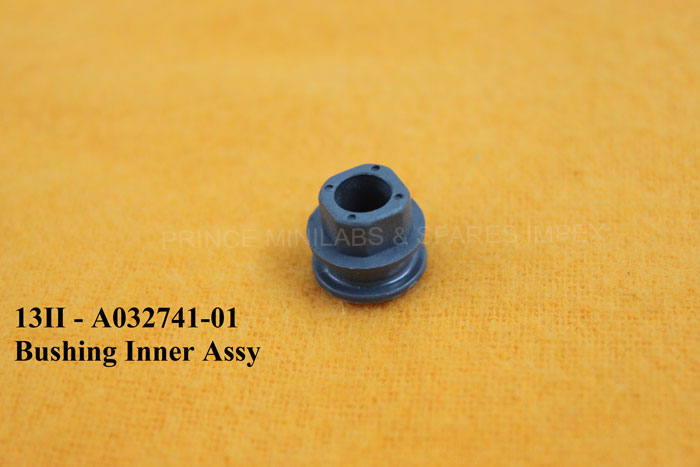

13.II. |
A.032741-01 |
BUSHING INNER ASSY (ORIGINAL) |
BUSHING INNER ASSY |

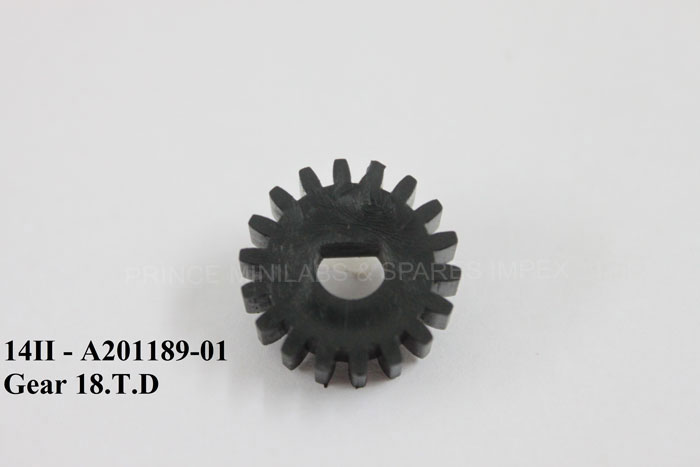

14.II. |
A.201189-01 |
GEAR (18.T.D.) |
15.II. |
A.233837-01 |
SPRING |

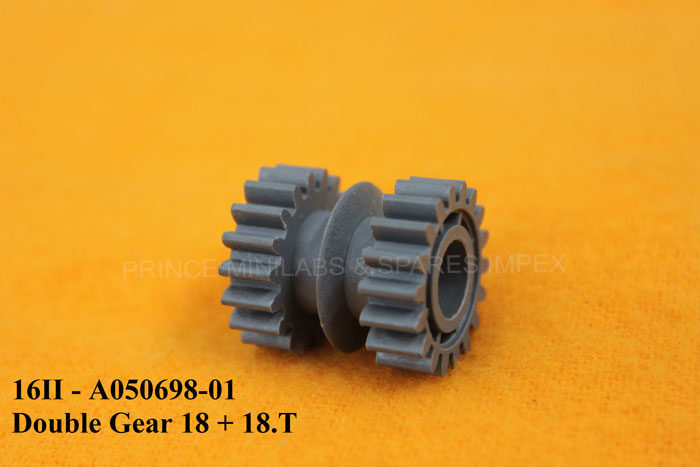

16.II. |
A.050698-01 |
DOUBLE GEAR (18+18)(ORIGINAL) |
DOUBLE GEAR (18+18) |

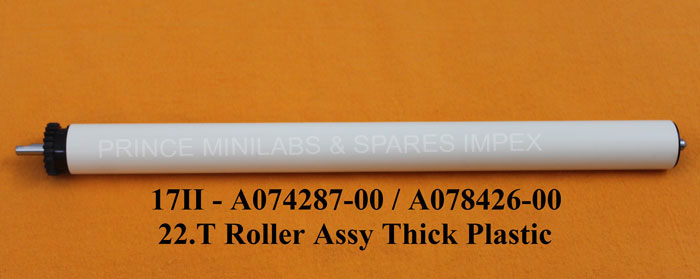

17.II. |
A.074287-00 |
22.T.ROLLER (2) ASSY. THK. (PLASTIC) rack no:1,2 |
A.078426-00 |
|

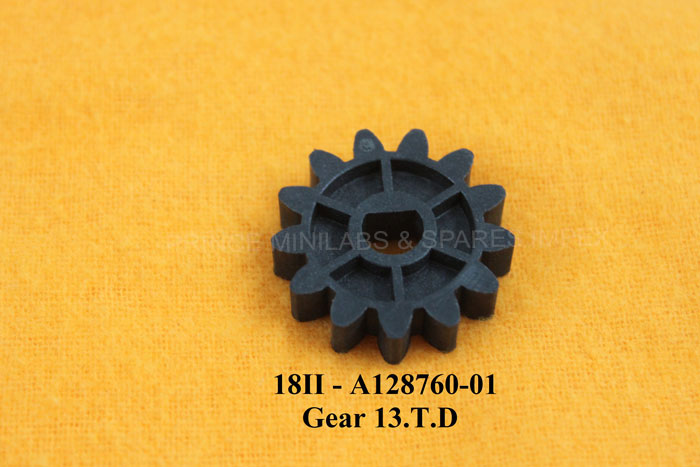

18.II. |
A.128760-01 |
GEAR (13.T.D.) |

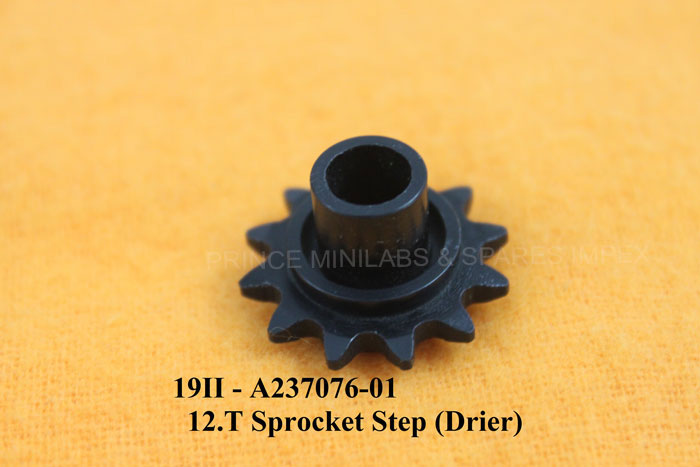

19.II. |
A.237076-01 |
12.T. SPROCKET STEP DRIYER |

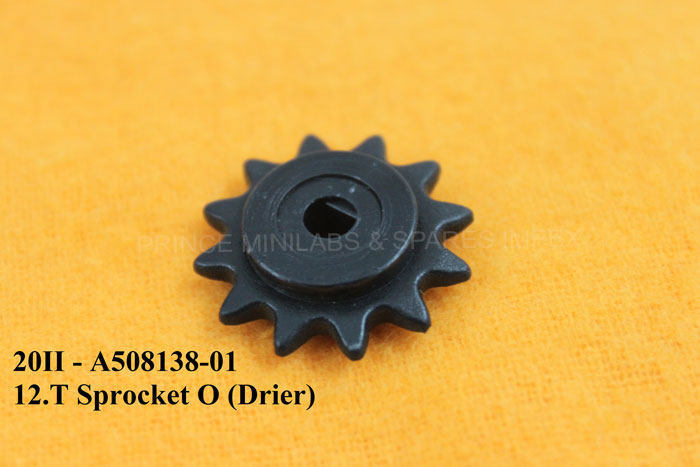

20.II. |
A.508128-01 |
12.T.SPROCKET O DRIYER |

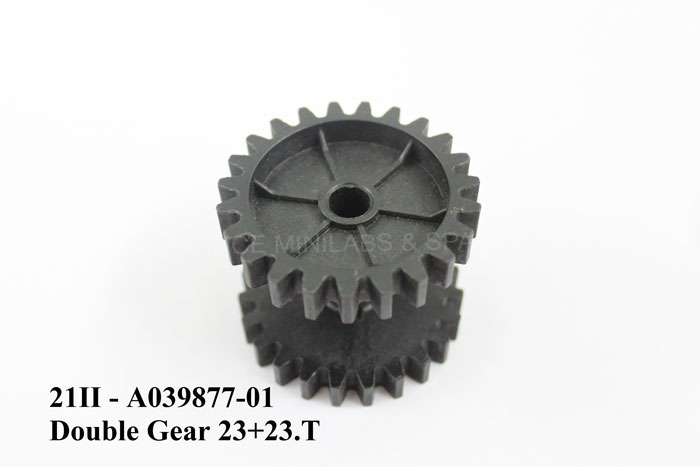

21.II. |
A.039877-01 |
DOUBLE GEAR(23+23) |

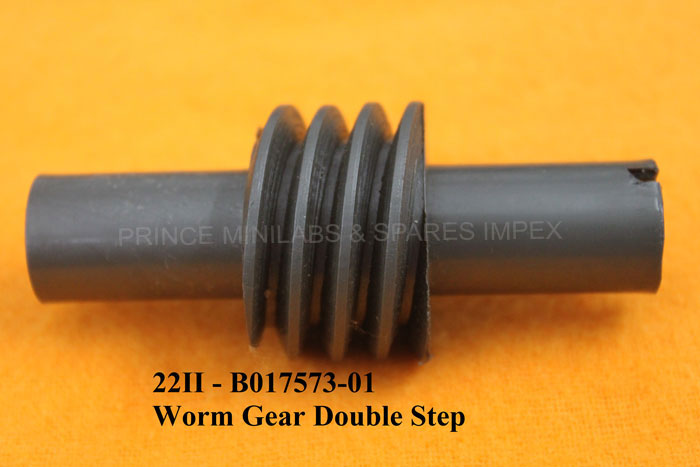

22.II. |
B.017573-01 |
WORM 'D' STEP |

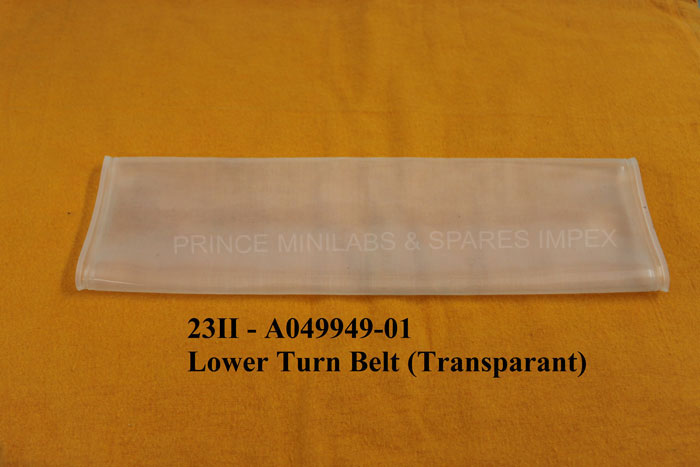

23.II. |
A.049949-01 |
LOWER TURN BELT TRANSPARENT |

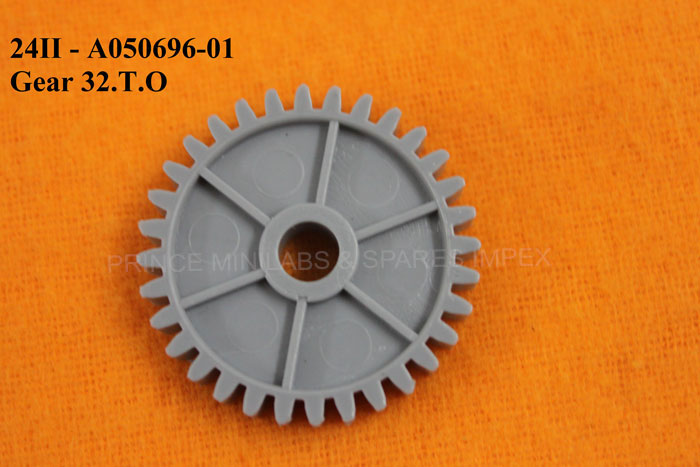

24.II. |
A.050696-01 |
GEAR (32.T.O.) |
25.II. |
A.074137-00 |
PLASTIC ROLLER PLAIN |

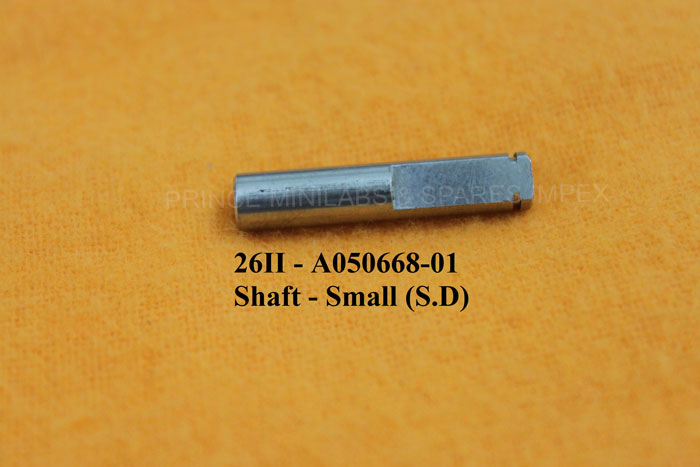

26.II. |
A.050668-01 |
SHAFT - SMALL S.D. |
27.II. |
A.237295-00 |
GEAR (16.T.D.) SMALL |

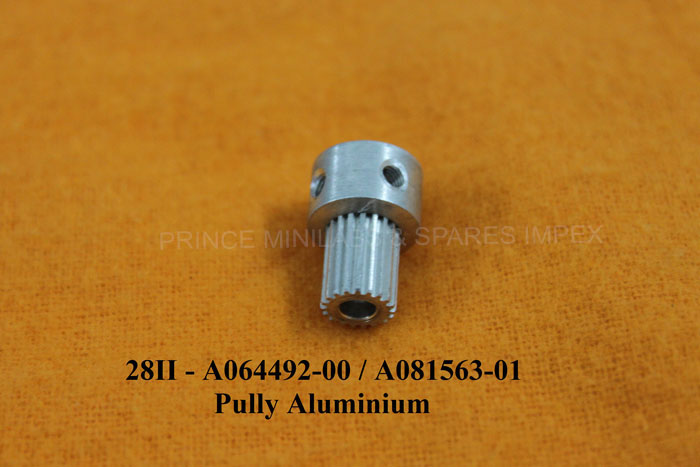

28.II. |
A.064492-00 |
bgcolor="#F9F9F9" PULLY ALUMINIUM |
|
A.081563-01 |
29.II. |
A.238812-01 |
SPRING LONG |

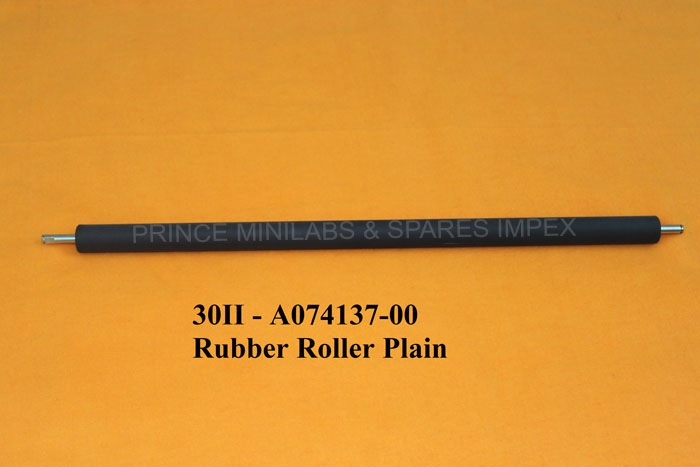

30.II. |
A.074137-00 |
ROLLER RUBBER (PLAIN) |

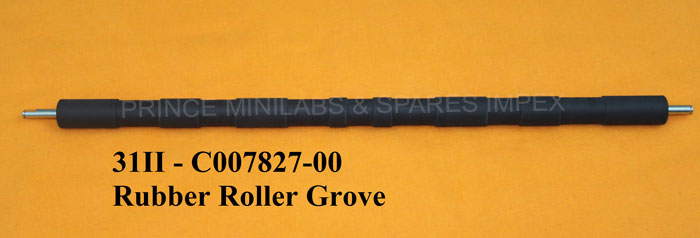

31.II. |
C.007827-00 |
ROLLER RUBBER (GROVE) |
32.II. |
B.022106-01 |
ARM |
33.II. |
A.084502-01 |
IDLE PULLY ASSY |
34.II. |
H.048069-00 |
WASHER |
35.II. |
A.036897-01 |

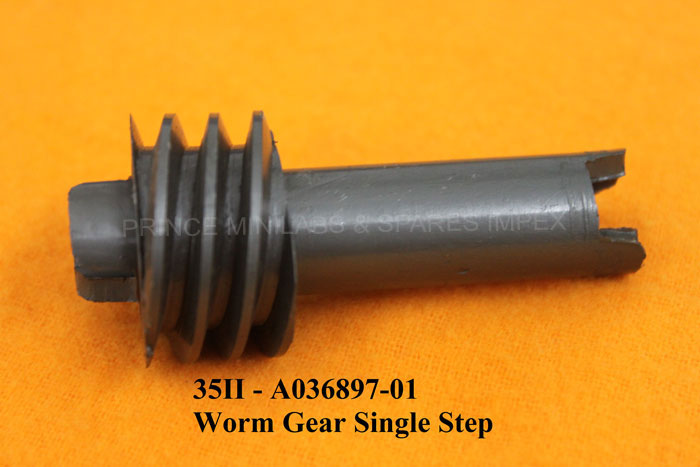

WORM (S) STEP |

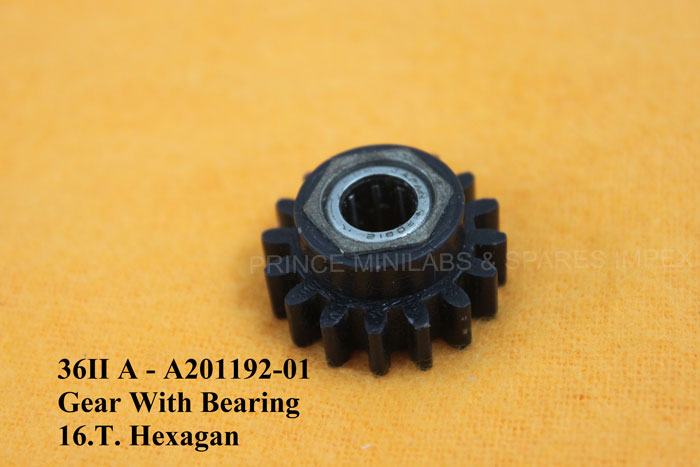

36.II. |
A.201192-01 |
GEAR WITH BEARING (16.T.HEXAGAN - MAGAZINE) |
37.II. |
A.055899-01 |
KNOB |

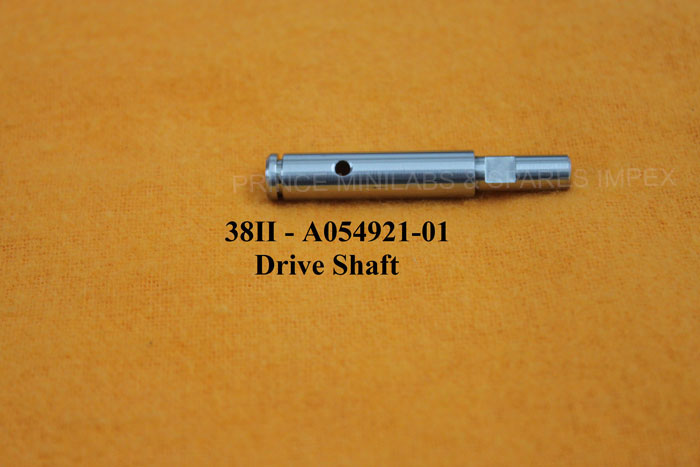

38.II. |
A.054921-01 |
DRIVE SHAFT (49.5MM)( 3411 ) |
39.II. |
A.051001-00 |
ROLLER THK WITH 32.T. GEAR (RUBBER) |
40.II. |
A.072989-00 |
RUBBER ROLLER PLAIN 13T ( LOWER TURN ) RACK |
40IIA. |
B.020741-01 |
RUBBER ROLLER GROVE 13T ( LOWER TURN ) RACK |
41.II |
B.019793-01 |
SHAFT |
42.II |
A.051198-01 |

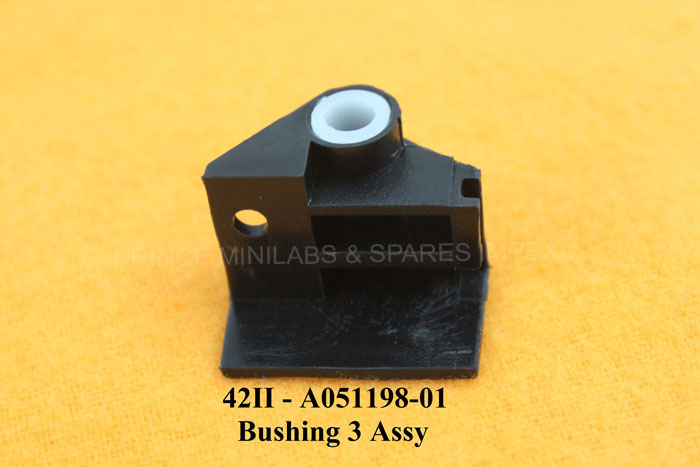

BUSHING ( 3 ) ASSY (WITH WHITE INSERT) |

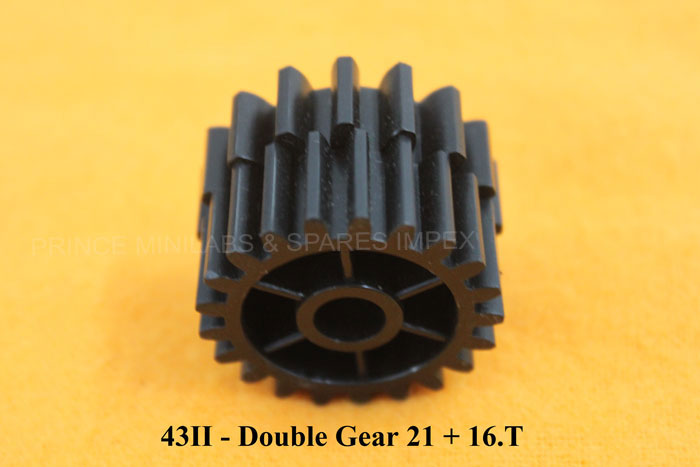

43.II. |
|
DOUBLE GEAR (21.T+16.T) |

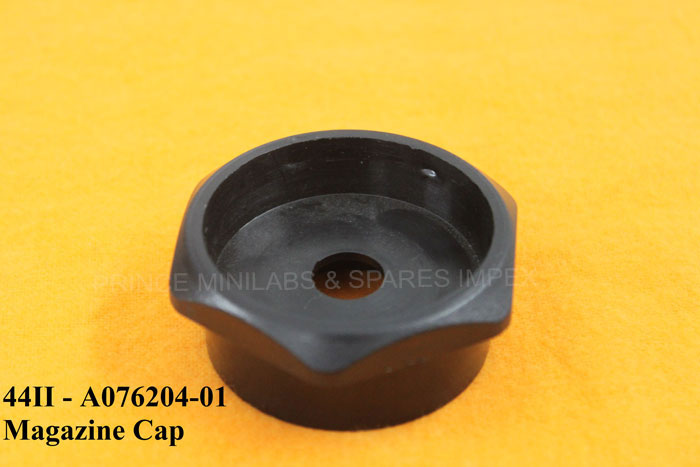

44.II |
A.076204-01 |
MAGAZINE CAP (SPLINDING BOSS.NO.2) |

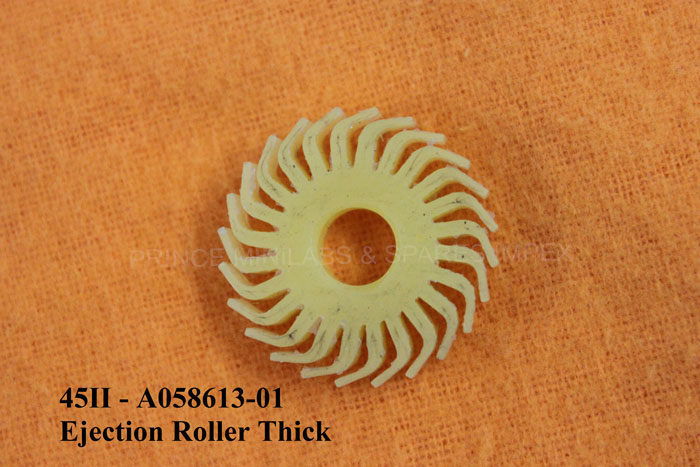

45.II. |
A.058613-01 |
EJECTION ROLLER THICK |

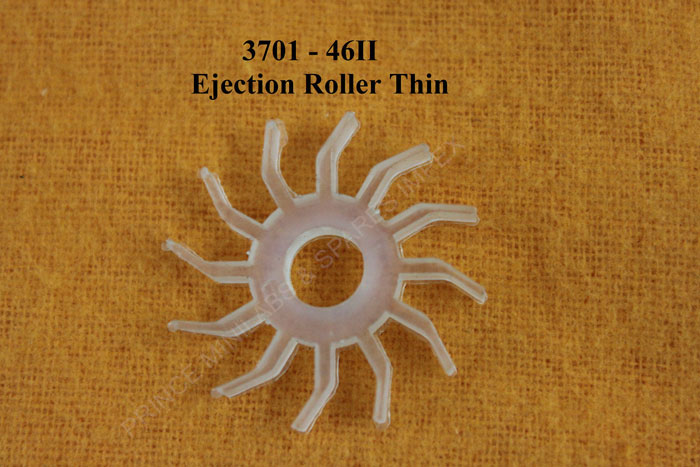

46.II. |
A.058598-01 |

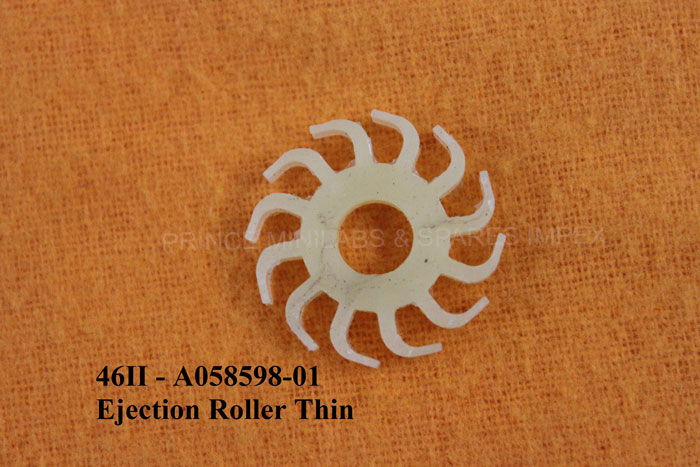

EJECTION ROLLER THIN |

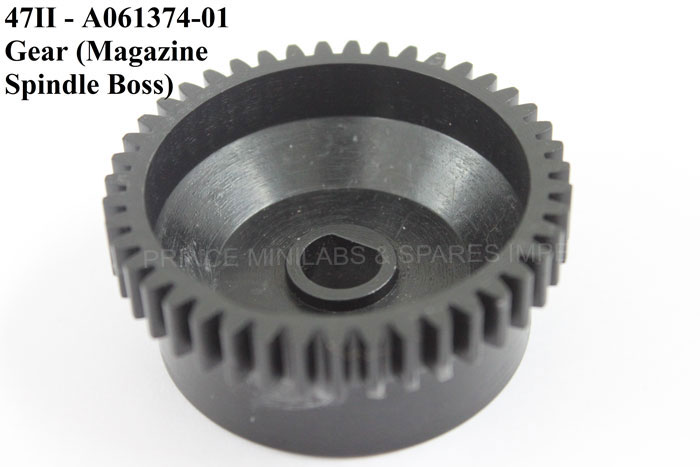

47.II. |
A.061374-01 |
GEAR (MAGAZINE SPINDLE BOSS) |
48.II. |
A.055913-01 |
BEARING HOLDER |

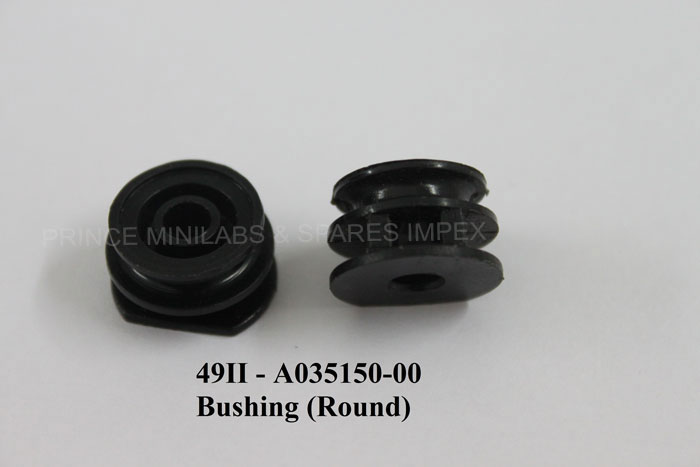

49.II. |
A.035150-00 |
BUSHING ( ROUND ) |
50.II. |
A.216227-00 |
BUSHING ( D ) |

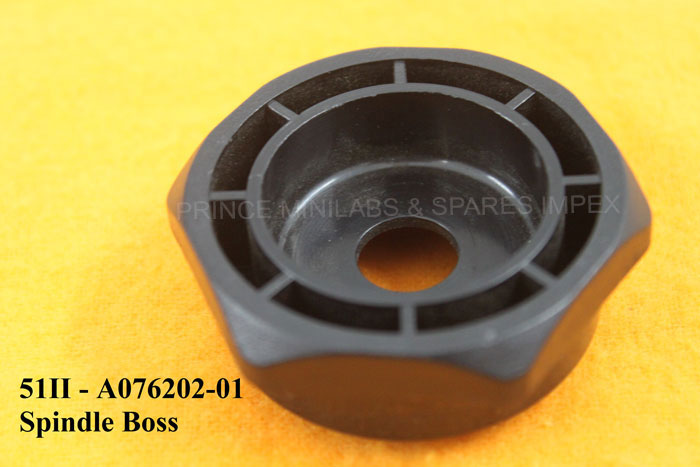

51.II. |
A.076202-01 |
SPINDLE BOSS. NO. 1 |

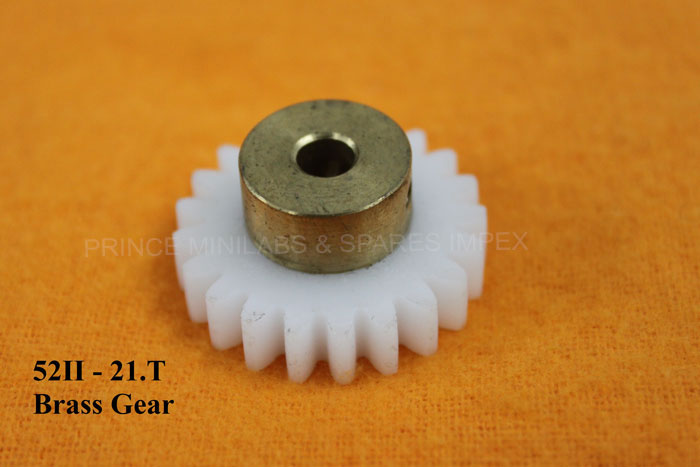

52.II. |
|
GEAR 21.T. WITH BRASS BUSH |
53.II. |
H.031093-00 |

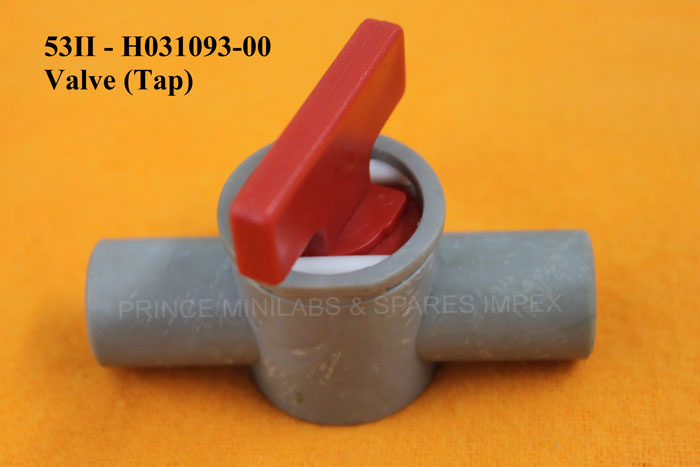

VALVE (TAP) |

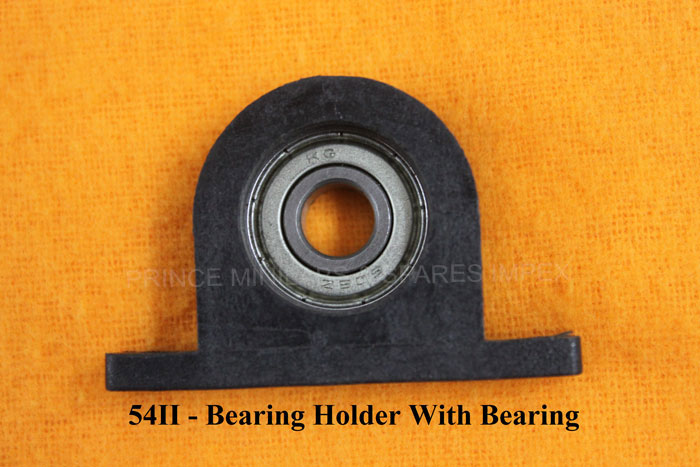

54.II. |
|
BEARING HOLDER WITH BEARING |
55.II. |
A.221245-01 |

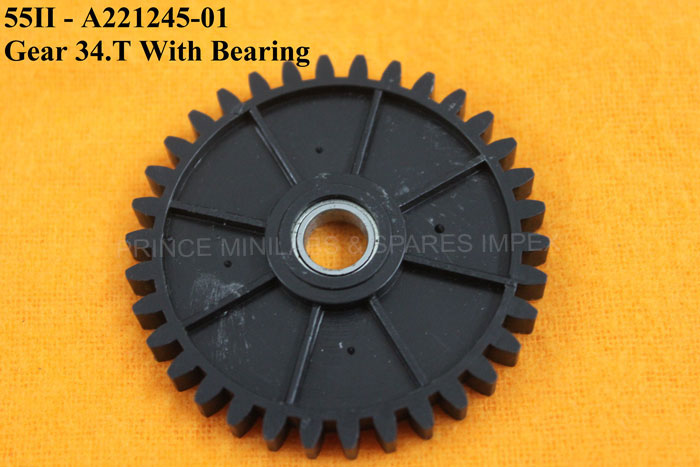

GEAR 34.T. WITH BEARING(MAGAZINE&DRYER RACK) |

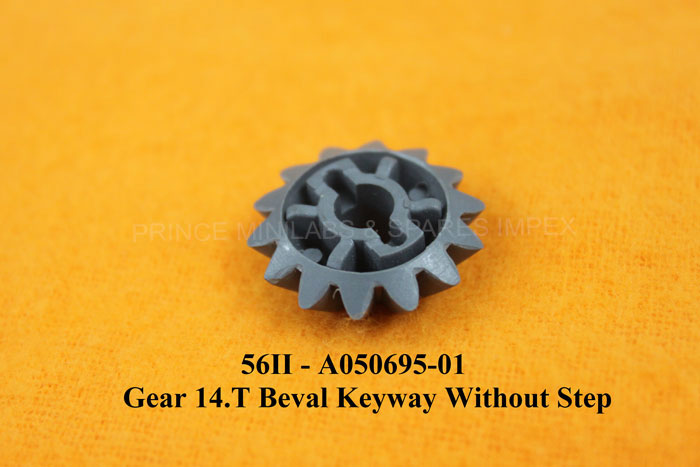

56.II. |
A.050695-01 |
GEAR 14.T. BEVEL KEYWAY W/O STEP |

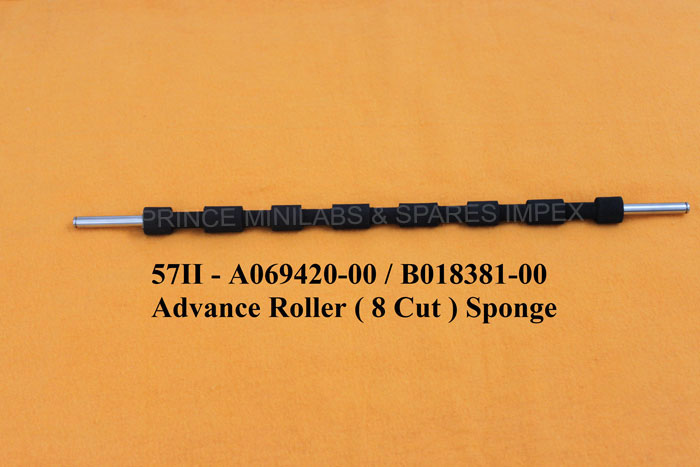

57.II. |
A.069420-00 |
ADVANCE ROLLER (8 CUT) SPONGE |
B018381-00 |

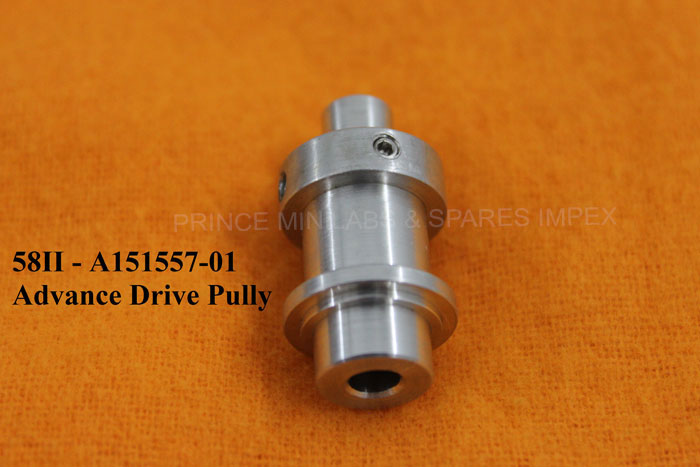

58.II. |
A.151557-01 |
ADVANCE DRIVE PULLEY |

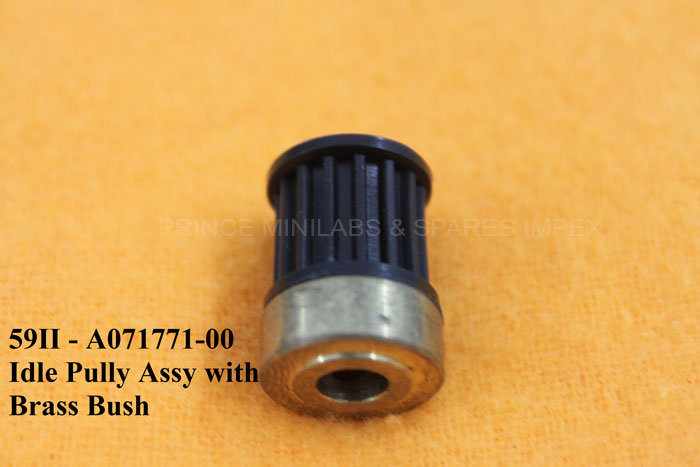

59II. |
A.071771-00 |
IDLE PULLY ASSY WITH BRASH BUSH |

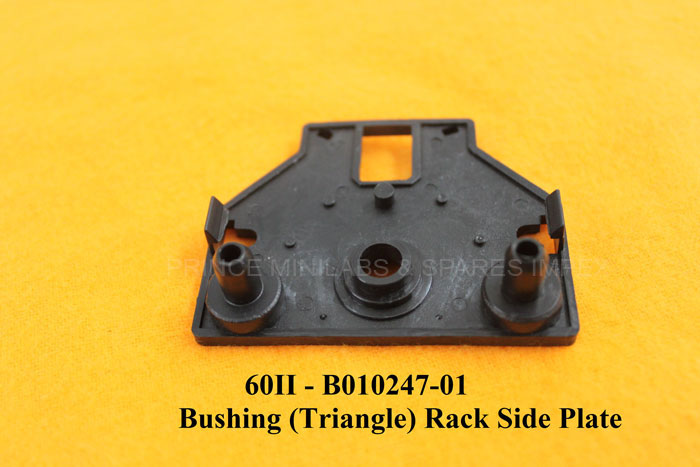

60II. |
B.010247-01 |
BUSHING (TRIANGLE) RACK SIDE PLATE |

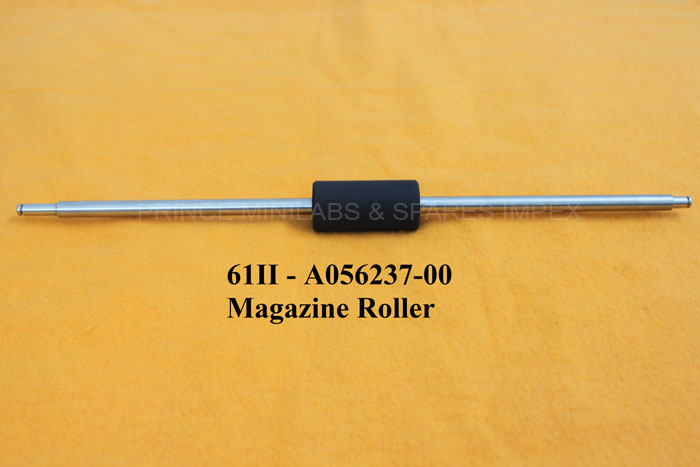

61II. |
A.056237-00 |
MAGAZINE ROLLER |
62II. |
H.016866-01 |
BELT YELLOW (SUB SCANNING UNIT) |

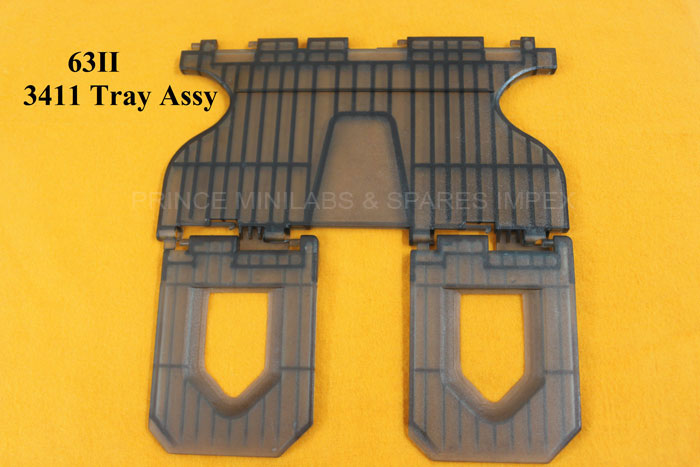

63II. |
|
SARTER PLATE (3411) |
64II. |
A.069411-00 |

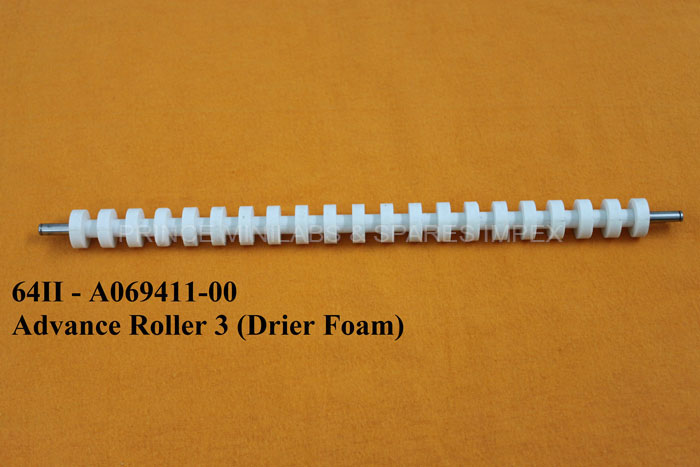

ADVANCE ROLLER 3 (DRIER FOAM) 24 CUT |

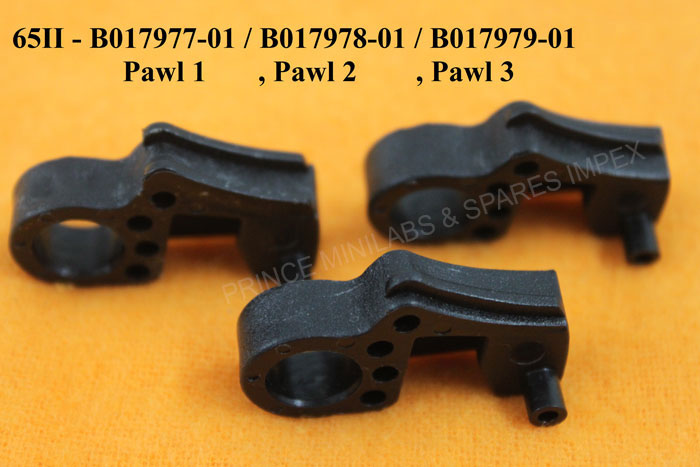

65II. |
B017977-01 |

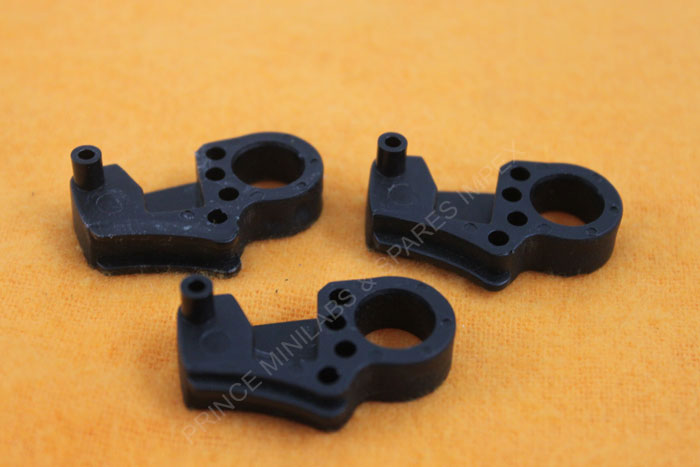

PAWL (1) |
B017978-01 |
PAWL (2) |
B017979-01 |
PAWL (3) |

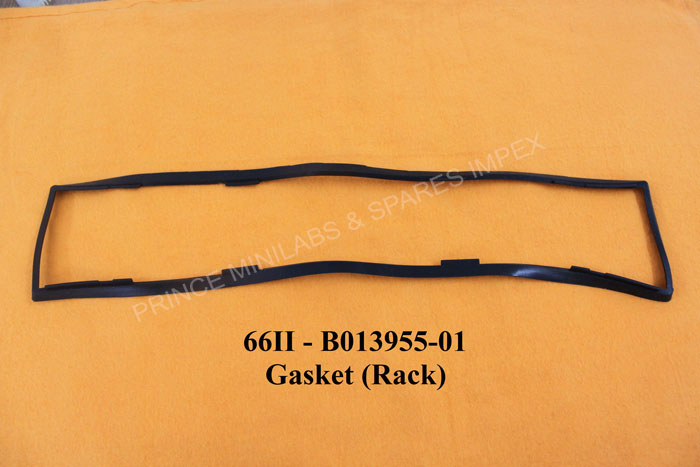

66.II. |
B.013955-01 |
GASKET ( RACK ) |

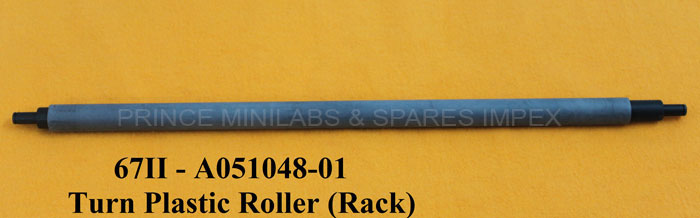

67.II. |
A.051048-01 |
TURN PLASTIC ROLLER (RACK) |

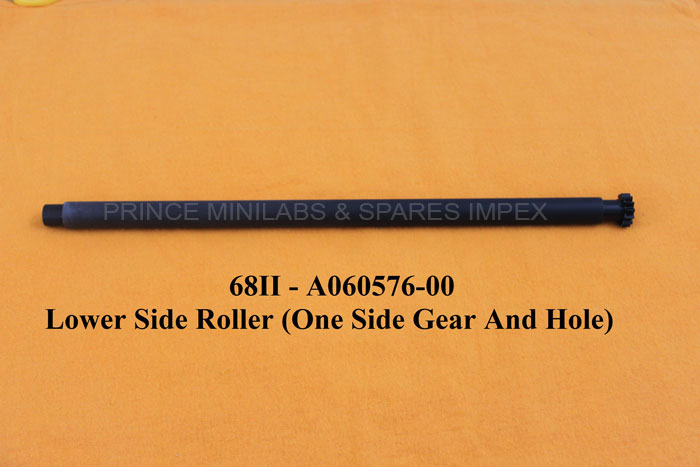

68.II. |
A.060576-00 |
LOWER SIDE ROLLER ONE SIDE GEAR ONE SIDE HOLE |
69II. |
D006709-00 |
GUIDE ( CROSS OVER RACK ) |
70II. |
A.085270-01 |

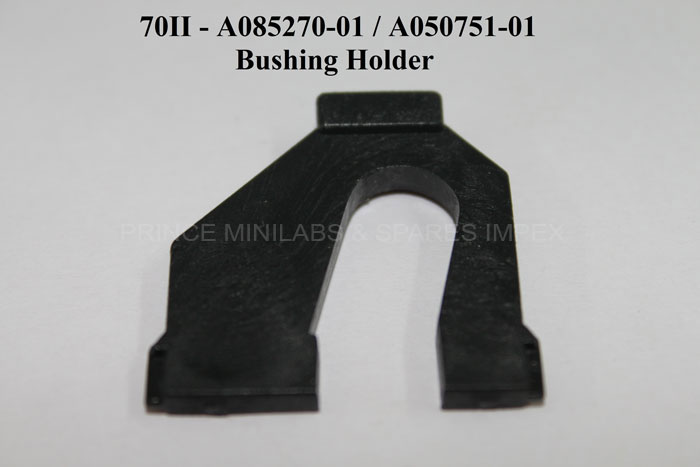

BUSHING HOLDER (RACK 1 , Y2) |
A050751-01 |
71II. |
A.088782-00 |
PIN(1) ASSY (3411/3201) |

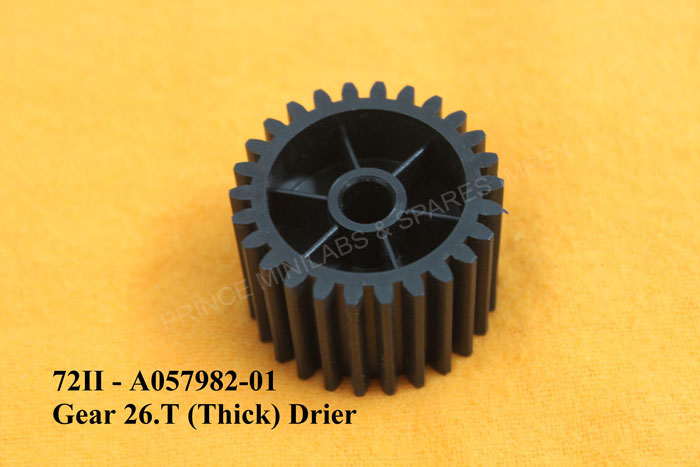

72II. |
A.057982-01 |
GEAR ( 26.T.) THK DRYER (3411) |
73II. |
I.091004-00 |
GASKET RUBBER ( POPPET VALVE ) |

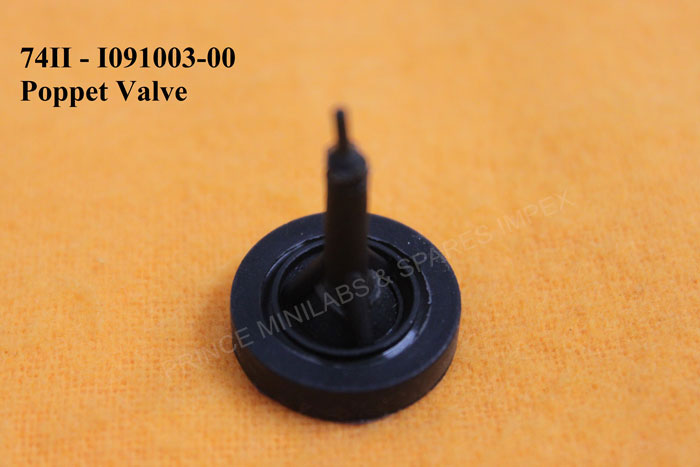

74II. |
I.091003-00 |
POPPET VALVE |

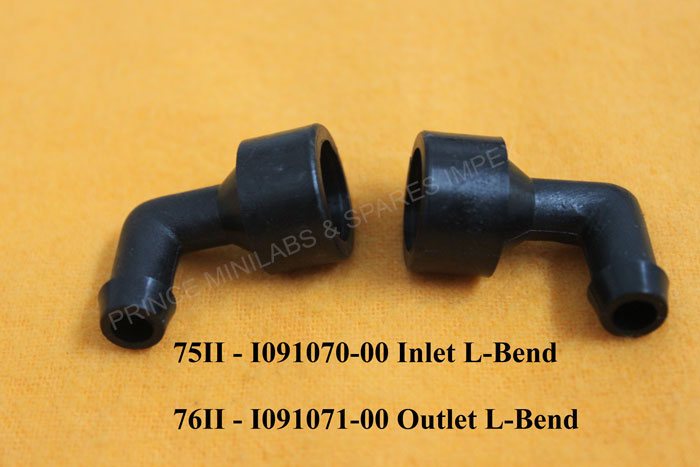

75II. |
I.091070-00 |
INLET L - BEND |
76II. |
I.091071-00 |
OUTLET L BEND |

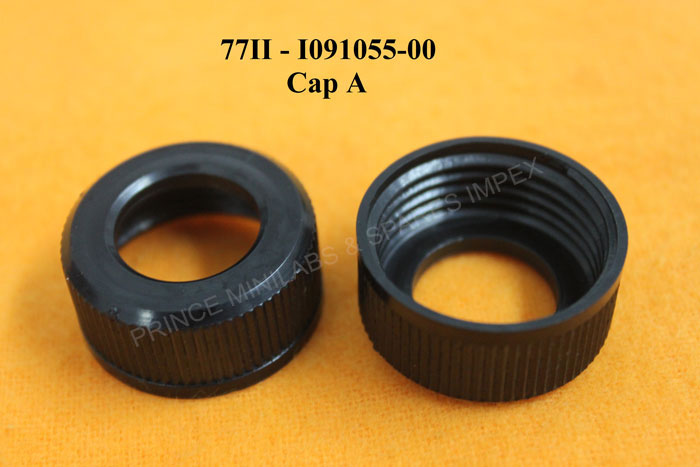

77II. |
I.091055-00 |
CAP 'A' ( POPPET VALVE) |

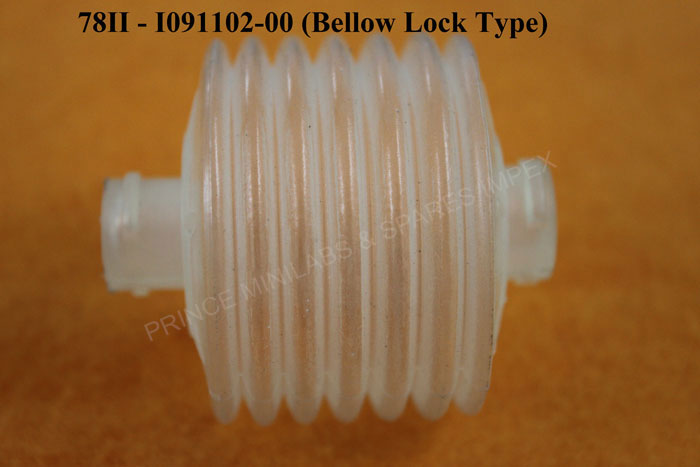

78II. |
I.091102-00 |
BELLOW LOCK TYPE |

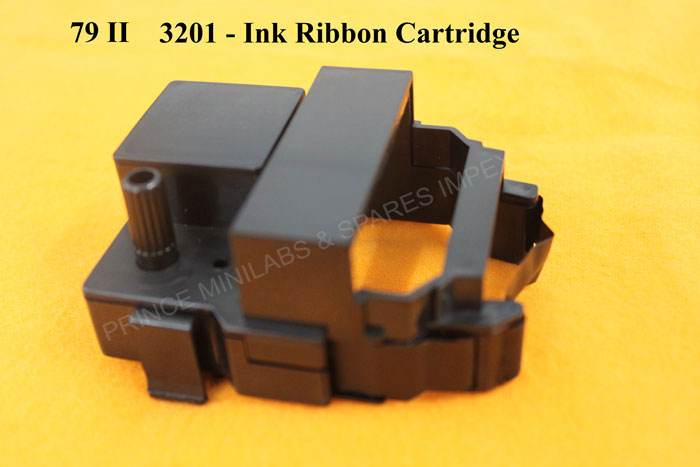

79II |
|
CASETTE INK RIBBON |

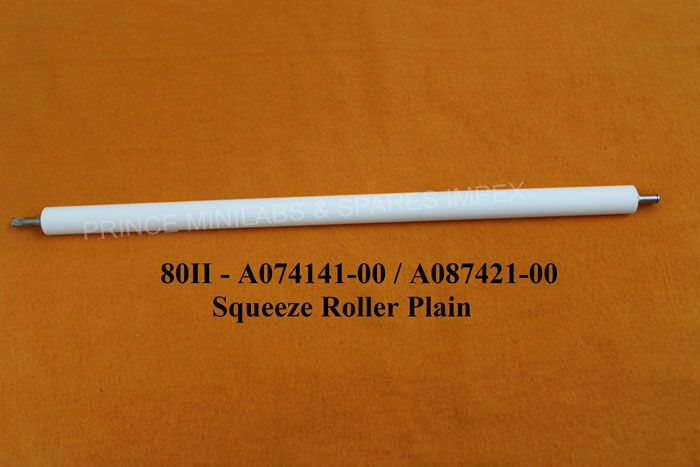

80II |
A074141-00 |
SQUEEZE ROLLER PLAIN |
A087421-00 |
81II |
A087422-00 |
SQUEEZE ROLLER GROVE |
A076106-00 |
82II |
|
DRIVE GEAR 25.T (GEAR WHITE) |
83II |
|
DRIVE GEAR ASSY (BLACK ONLY) |

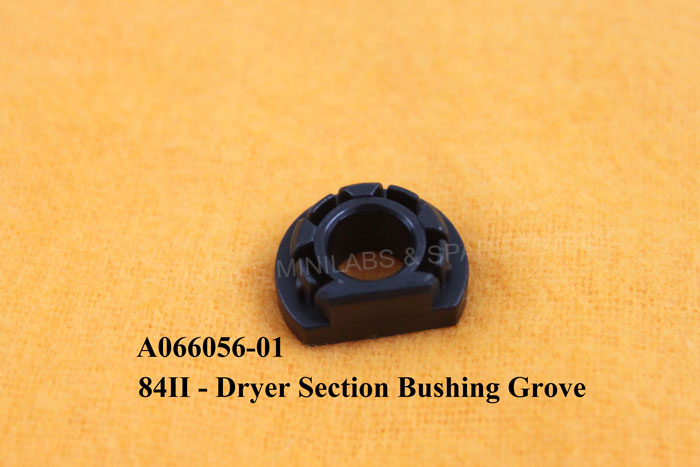

84II |
A066056-01 |
DRYER SECTION BUSHING GROVE |
85II |
A065831-01 |
DRYER BUSH |

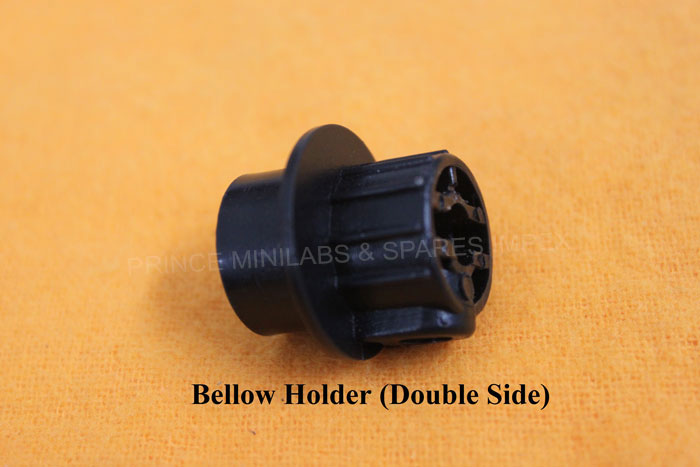

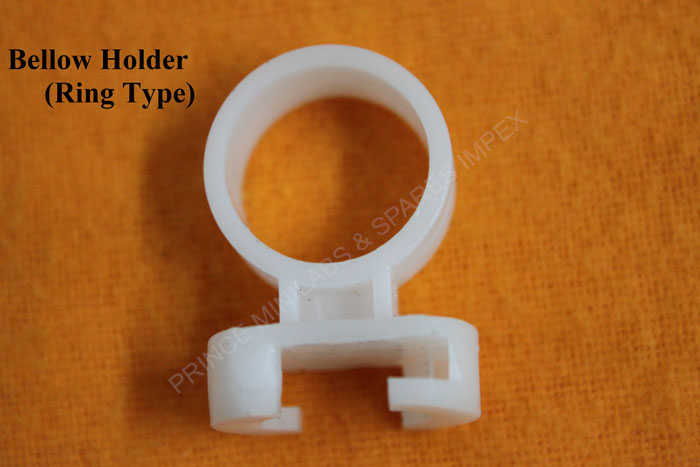

86II |
H031058-00 |
BELLOW HOLDER |
87II |
|
REP PUMP COUPLING |
88II |
I091072-00 |
REP PUMP POPPET VALVE HOLDER |
