FUJI FRONTIER 330 / 340 / 350 / 355 / 370 / 375 / 550 / 570 Spares

SL.NO

 NUMBER

             DESCRIPTION

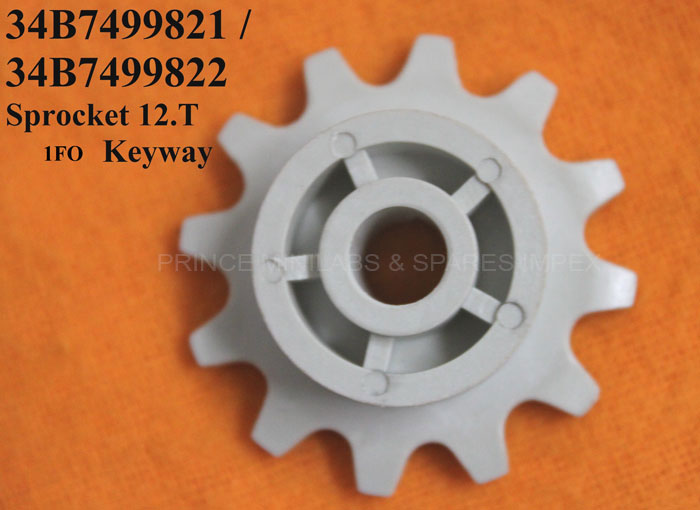

1.FO.

E.34B7499821

SPROCKET ( 12T. KEY WAY)  ( ORIGINAL )



F.34B7499822

SPROCKET ( 12T. KEY WAY)

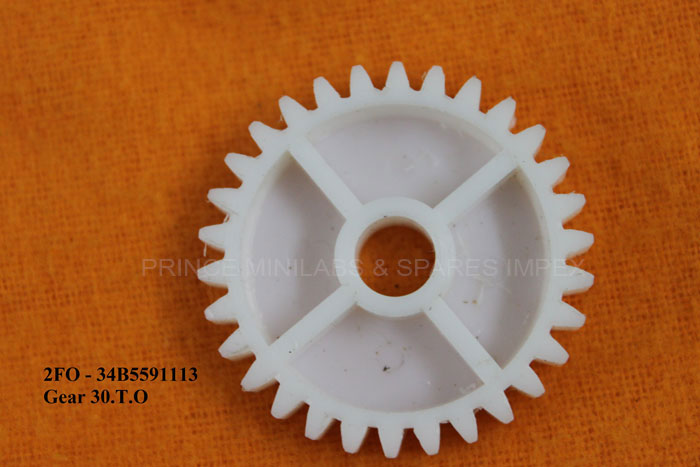

2.FO.

F34B5591113

GEAR ( 30.T.O.)



E.327F1122425C (350)

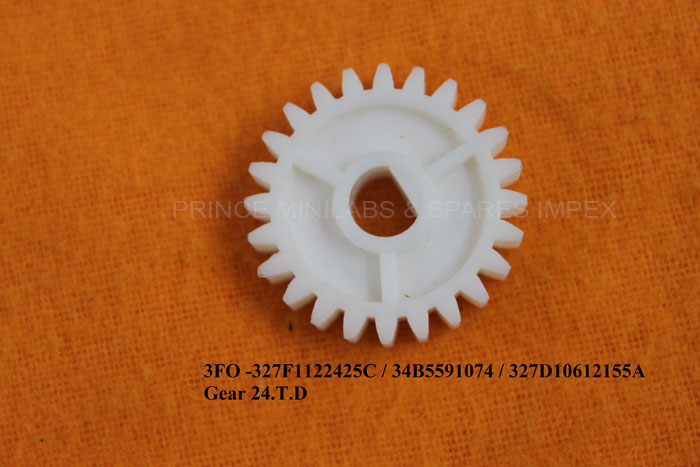

3.FO.

F34B5591074

GEAR SPUR(24.T.D.)



F.327D1061255A (550)



4.FO.

E.34B7499902

GEAR(21.T.D)(11MM)

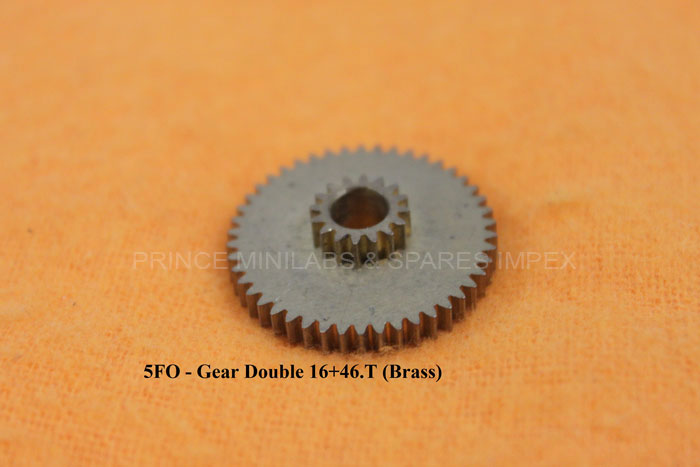

5.FO.



GEAR (DOUBLE)(16+46)(BRASS)

6.FO.

E.327F1122605B

GEAR (20.T.D.) 11MM

7.FO.

334H0208D

ROLLER PLAIN(RUBBER) (GUIDE)



334H0207D

7A.FO.

E334H0195F

ROLLER RACK (PLAIN)

334C1060235 (570)

8.FO.

334H0209E

ROLLER GROVE (RUBBER)

9.FO.

E.334H0198C

ROLLER THK (RUBBER)SLEEVE

3340197E

334C1060232

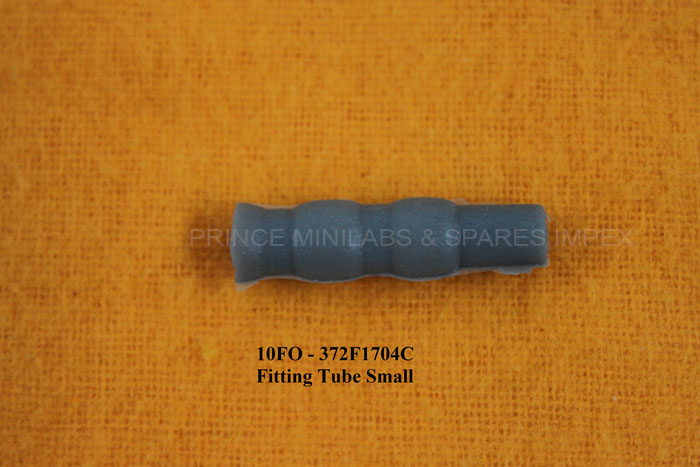

10.FO.

372F1704C

FITTING TUBE RUBBER (SMALL)340/370

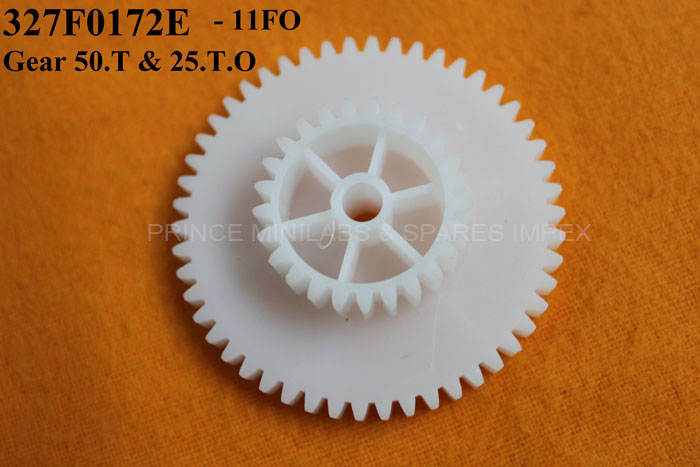

11.FO.

E.327F0172E

GEAR(50.T.O. & 25.T.O.) 550

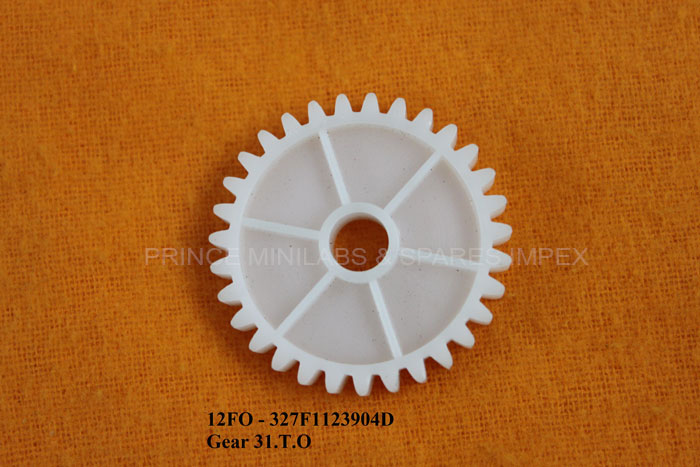

12.FO.

E.327F1123904D

GEAR (31.T.O.) (350) ( ORIGINAL )





GEAR (31.T.O.) (350)

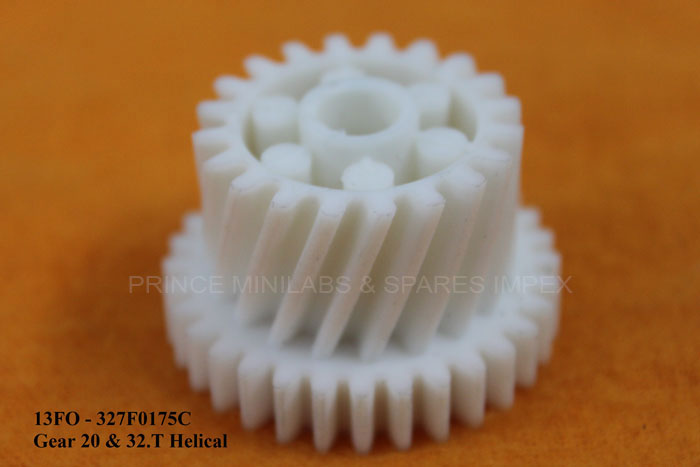

13.FO.

E.327F0175C

GEAR(20.T, HELICAL & 32.T.)

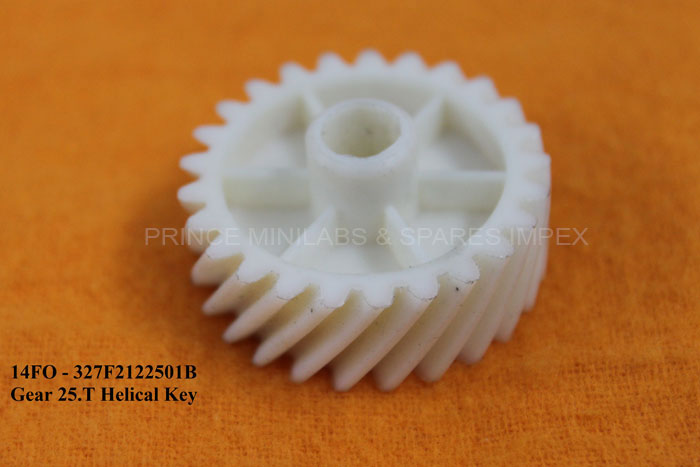

14.FO.

E.327F2122501B

GEAR (25.T. HELICAL KEY (550))

15.FO.

E334H0235 (Old. No.)

ROLLER (SOFT TOUCH)

334H01021 (New.No.)

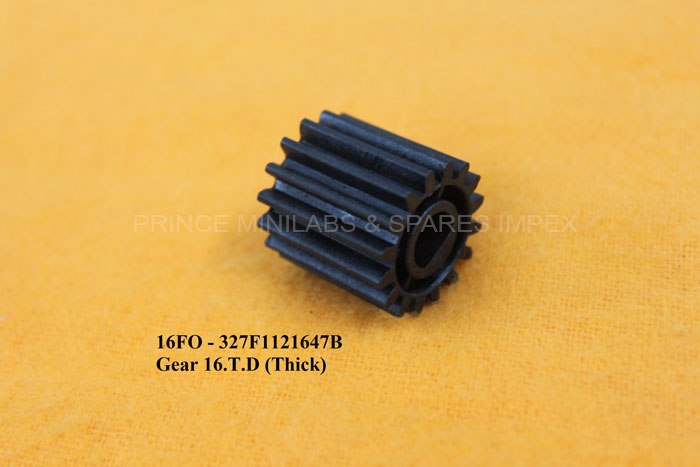

16.FO.

E327F1121647B

GEAR (16..T.D. THK ) (550 / 350)

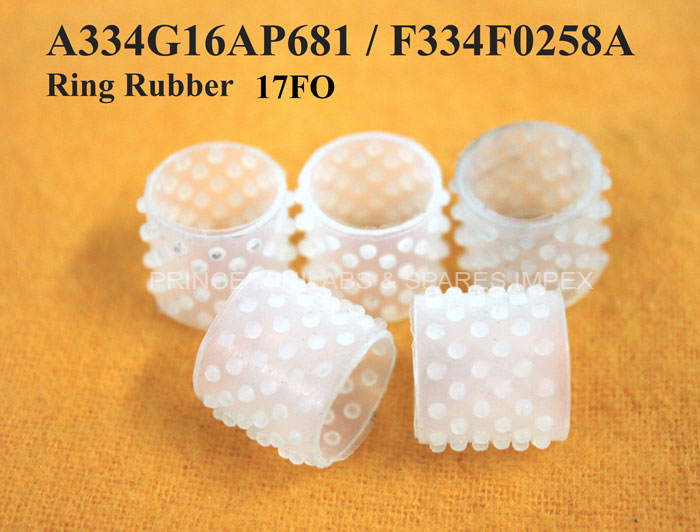

17.FO.

A.334G16AP681

RING RUBBER



F334F0258A



18.FO.

334F3644C

ROLLER RUBBER (THK)  4 BUSH

19.FO.

E.334F0223D

ROLLER (PLASTIC)

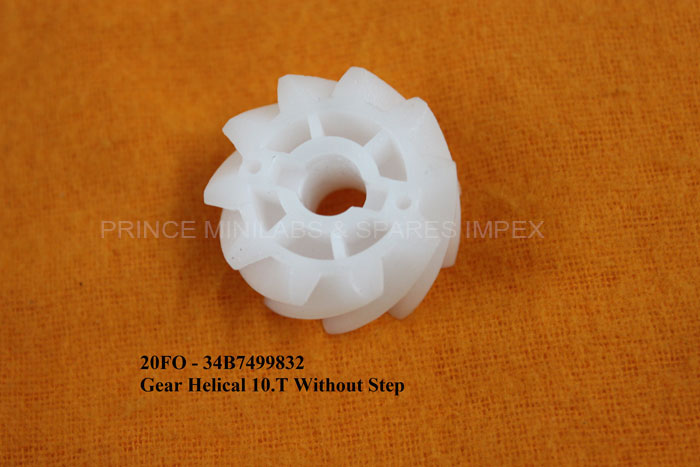

20.FO.

E.34B7499832

GEAR HELICAL 10.T. (WITHOUT STEP)

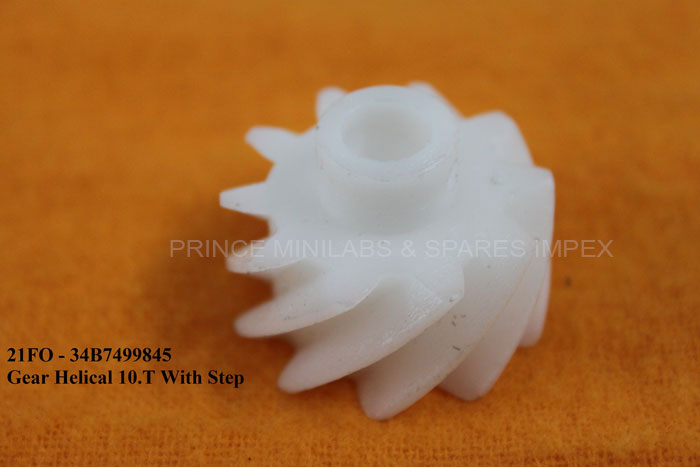

21.FO.

E.34B7499845

GEAR HELICAL 10.T. (WITH  STEP)

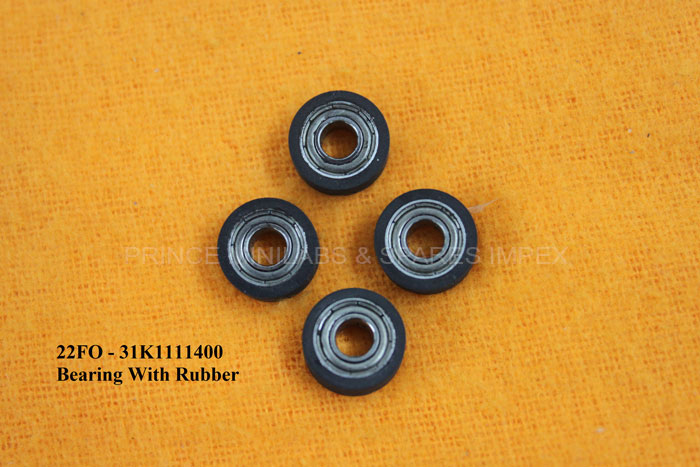

22.FO.

31K111400

BEARING WITH RUBBER (330))

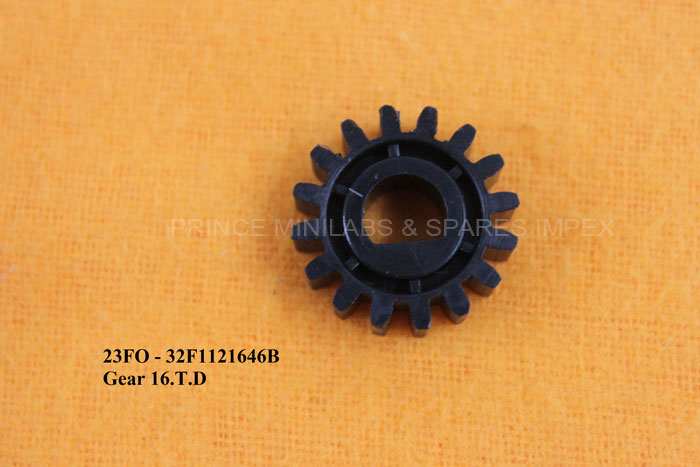

23.FO.

327D904852

GEAR (16. T. D.)



F32F1121646B



24.FO.

309S0006

WASHER

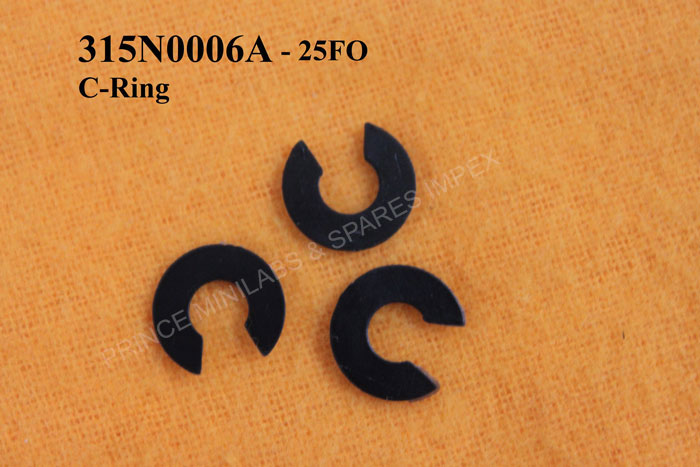

25.FO.

315N0006A

C - RING

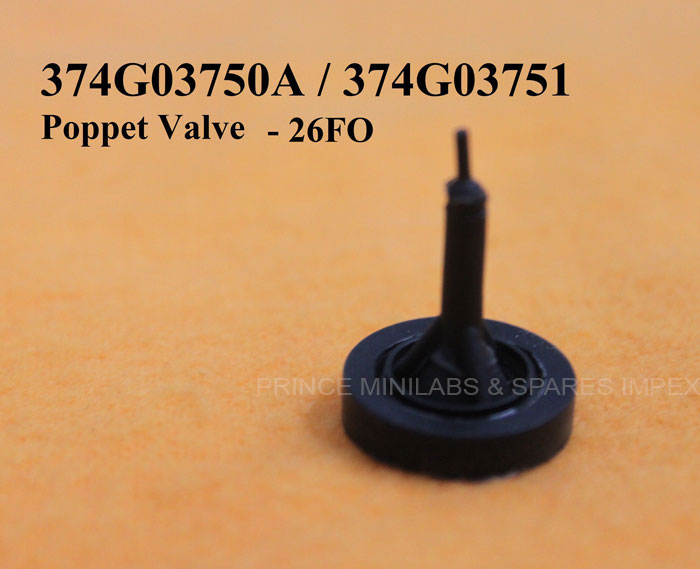

26.FO.

374G03750A

VALVE (POPPET VALVE)



374G03751

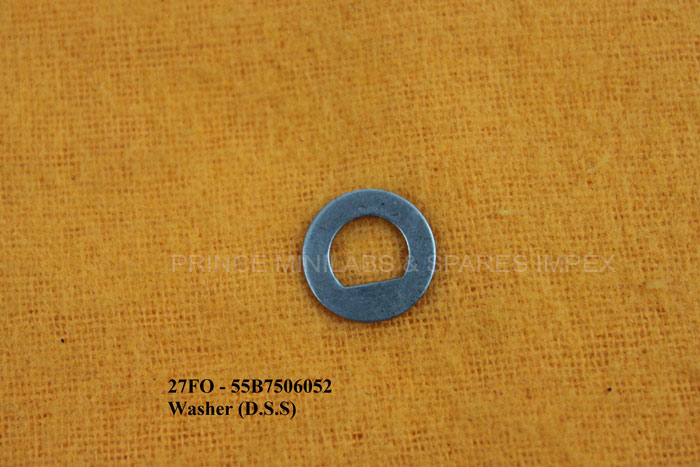

27.FO.

E55B7506052

WASHER (D.S.S.)

28.FO.

330F0013E

GEAR(28.T.O.) CLUTCH

29.FO.

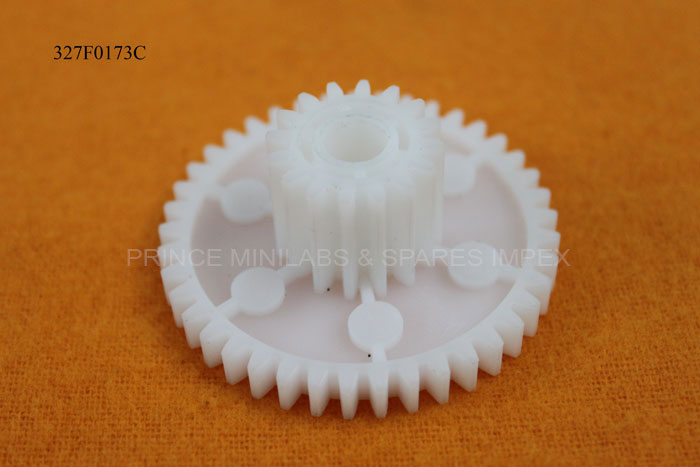

327F0173C

GEAR SPUR (41 + 16.T.O.)

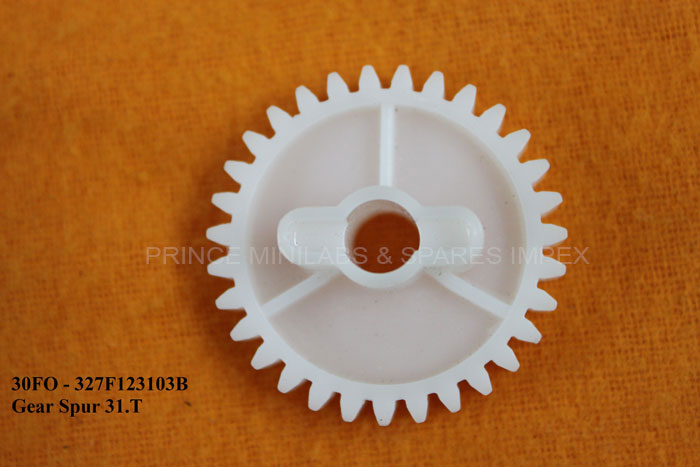

30.FO.

327F123103B

GEAR SPUR - 31.T(WITH SHAFT)

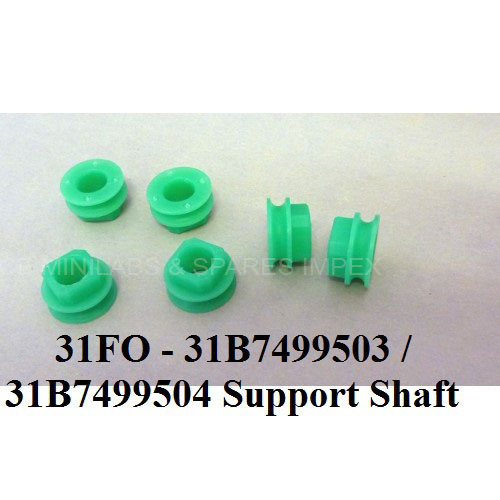

31.FO.

31B7499503

SUPPORT SHAFT (ORIGINAL)



31B7499504

SUPPORT SHAFT

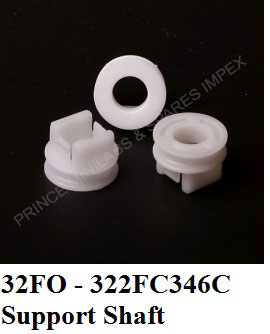

32.FO.

322FC346C

SUPPORT SHAFT (ORIGINAL)



SUPPORT SHAFT

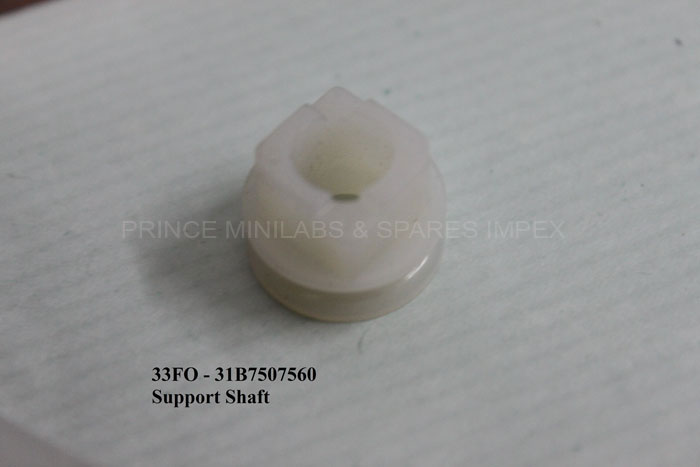

33.FO.

31B7507560

SUPPORT SHAFT (ORIGINAL)







34.FO.

334H0191C

ROLLER RUBBER ONEWAY BEARING

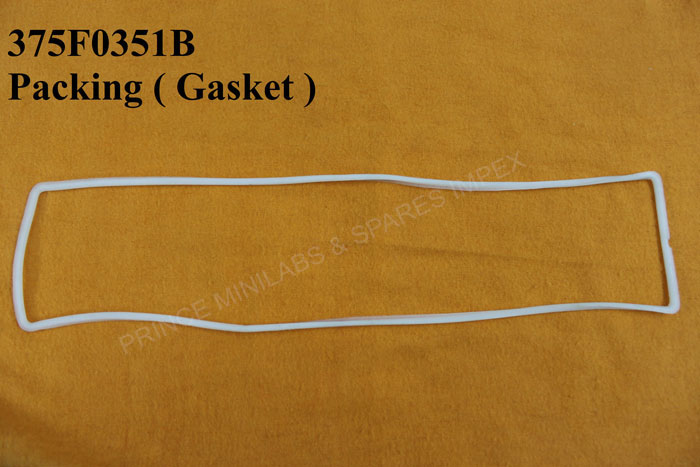

35.FO.

375F0351B

PACKING (GASKET)

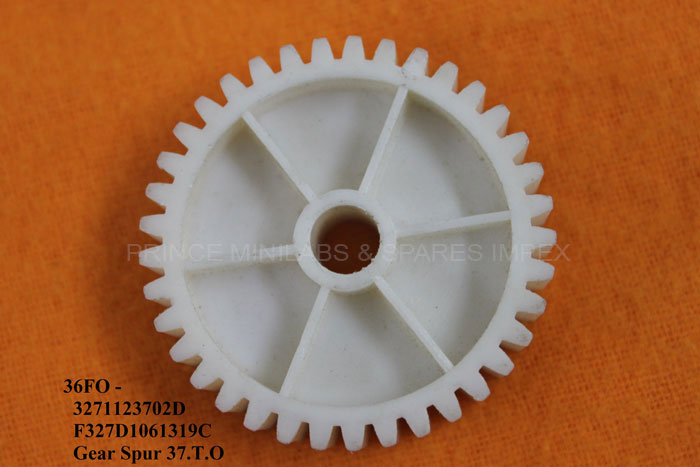

36.FO.

3271123702D

GEAR SPUR (37.T.O.)



F327D1061319C

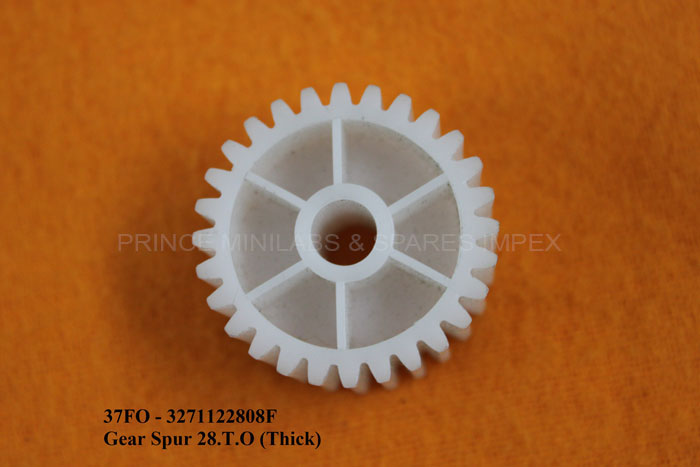

37.FO.

3271122808F

GEAR SPUR (28.T.O.) THK

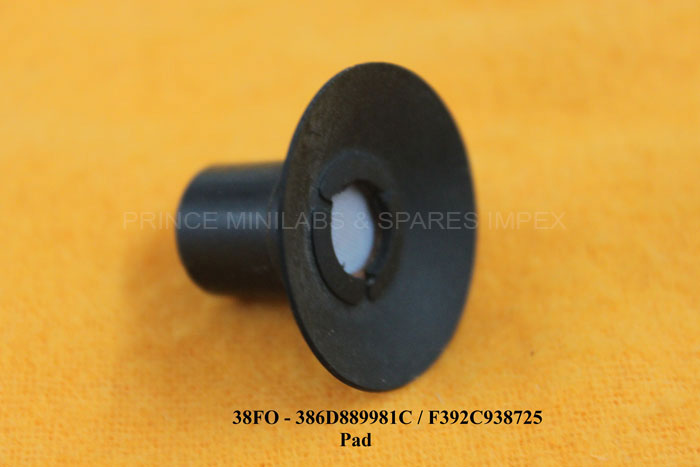

38.FO.

386D889981C

PAD



F392C938725



39.FO.

334F3641D

ROLLER RUBBER(L.D. CUT)

40.FO.

334F3642D

ROLLER RUBBER(S.D. CUT)

41.FO.

334F3643D

ROLLER RUBBER(LONG SHAFT)



334H0204C

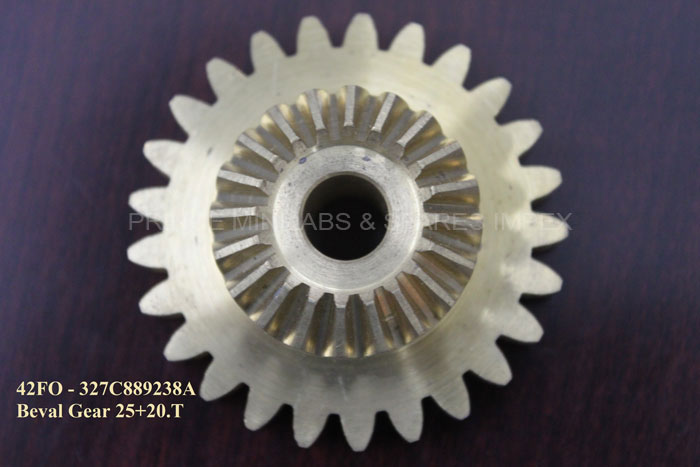

42.FO.

327C889238A

BEVAL GEAR(25+20.T.METAL)

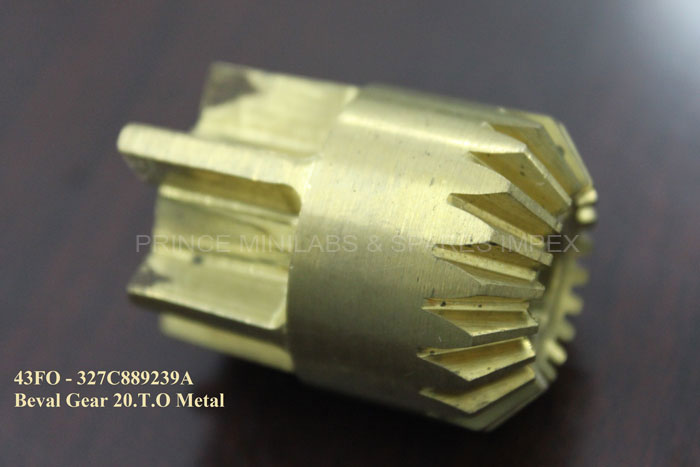

43.FO.

327C889239A

BEVAL GEAR(20.T.O.METAL)

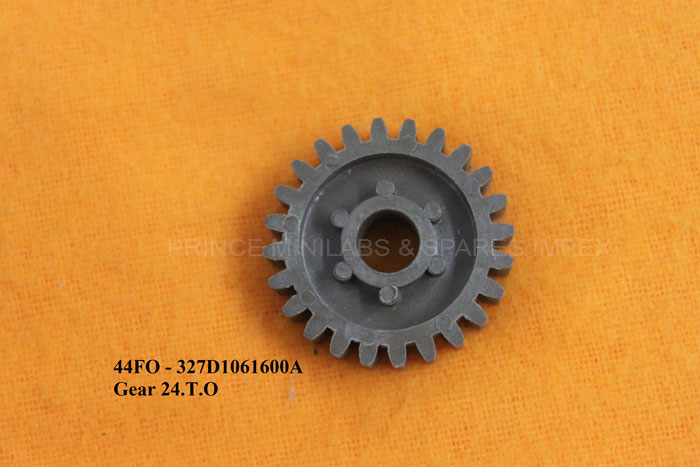

44.FO.

327D1061600A

GEAR SPUR(24.T.O.) -570 (ORIGINAL )





GEAR SPUR(24.T.O.) -570

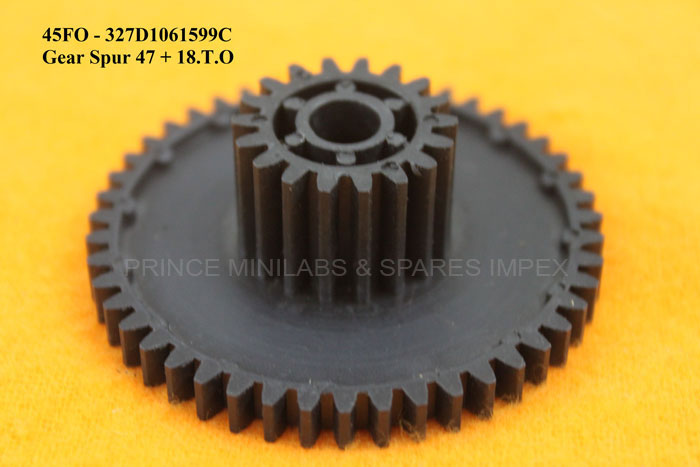

45.FO.

327D1061599C

GEAR SPUR(DOUBLE (47+18.T.O.) -570  ( ORIGINAL )





GEAR SPUR (DOUBLE (47+18.T.O.) -570

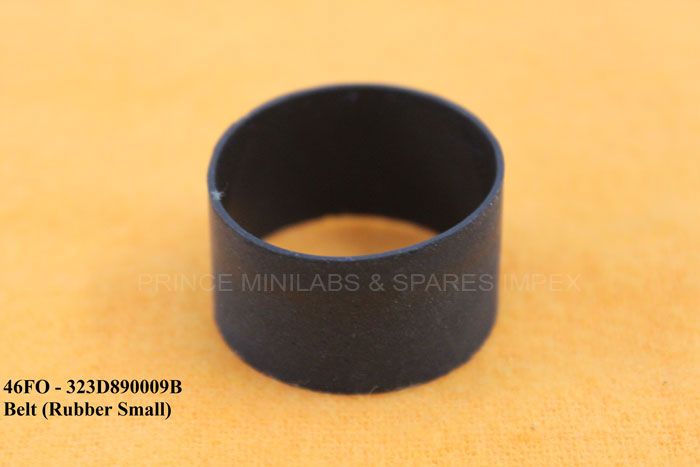

46.FO.

323D890009B

BELT (RUBBER - SMALL)

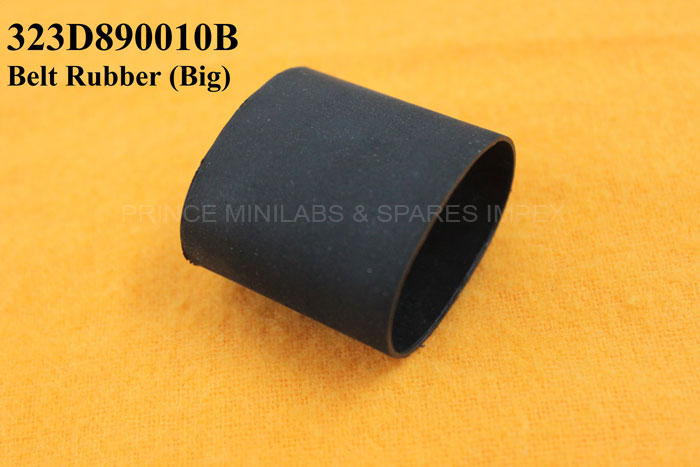

47.FO.

323D890010B

BELT (RUBBER - BIG)

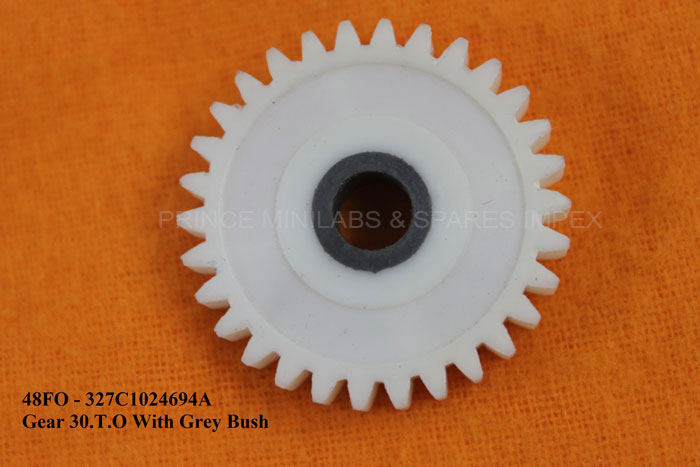

48.FO.

F327C1024694A

GEAR (30.T.O.) WITH GREY BUSH

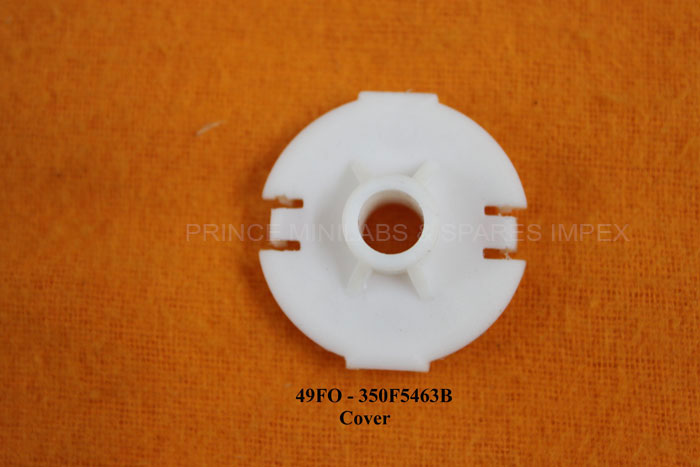

49.FO.

350F5463B

COVER

50.FO.

F363C896544C

ROLLER  FEED - 1

51.FO.

F363C896545C

ROLLER  FEED - 2

52.FO.

F363C896546C

ROLLER  FEED - 3

53.FO.

374D890141A

FILTER (350/355/370/375) 254 X 112 X 22.5MM

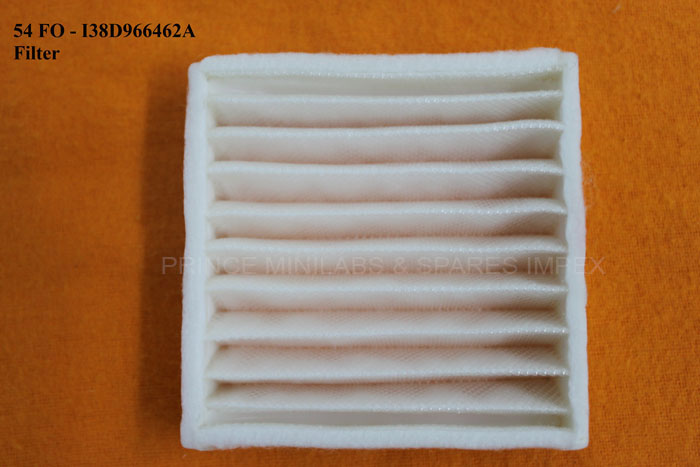

54.FO.

138D966462A

FILTER (330/340) 87 X 87 X 22.5MM

55.FO.

138D966460D

FILTER (330/340) 213 X 21 X 27.5MM

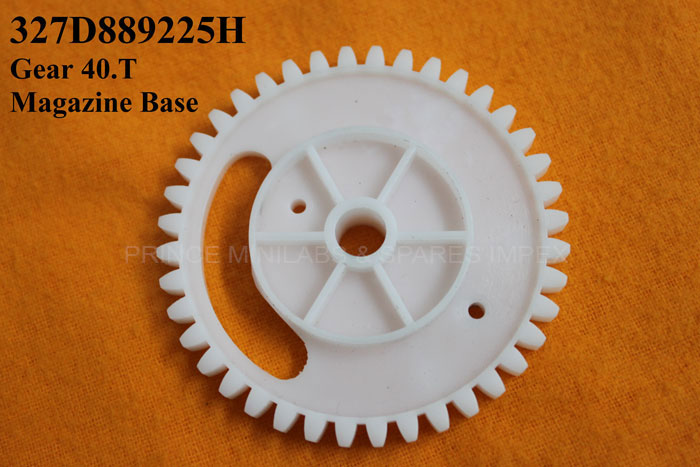

56.FO.

327D889225H

GEAR SPUR 40.T. MAGAZINE BASE)

57.FO.

F363C-889452A

ROLLER

58.FO.

F363C-889365

ROLLER

59.FO.

F363C-889358C

ROLLER

60.FO.

F363C-889364

ROLLER

61.FO.

F363C-889359

ROLLER

62.FO.

F334F-3640F

ROLLER

63.FO.

F363D-889475B

ROLLER

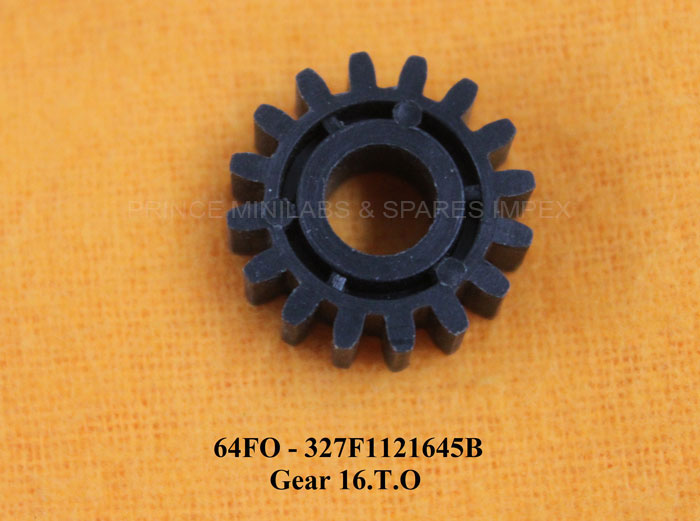

64.FO.

327F1121645B

GEAR(16.T.O.)

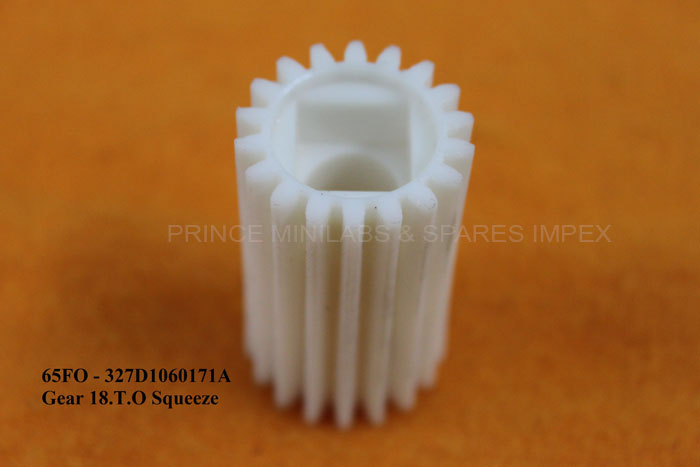

65.FO.

327D1060171A

GEAR (18.T.O.)SQUEEZE

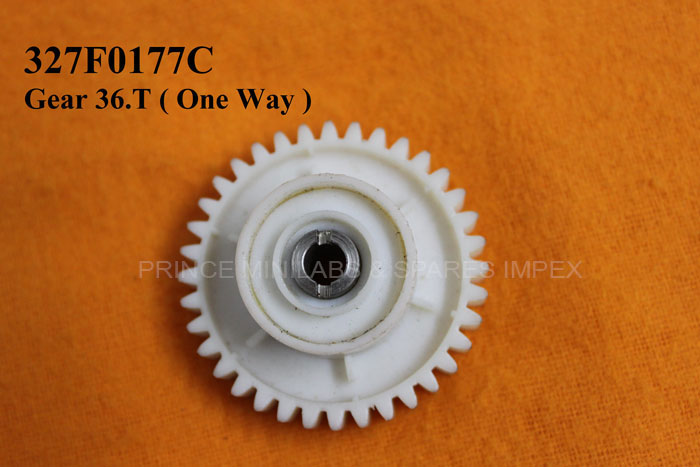

66.FO.

327F0177C

GEAR ASSY (36.T.) ONE WAY

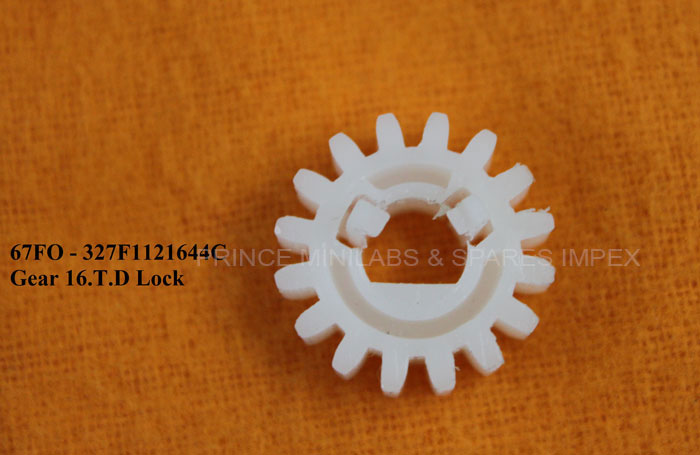

67.FO.

327F1121644C

GEAR (16.T.D.) LOCK TYPE

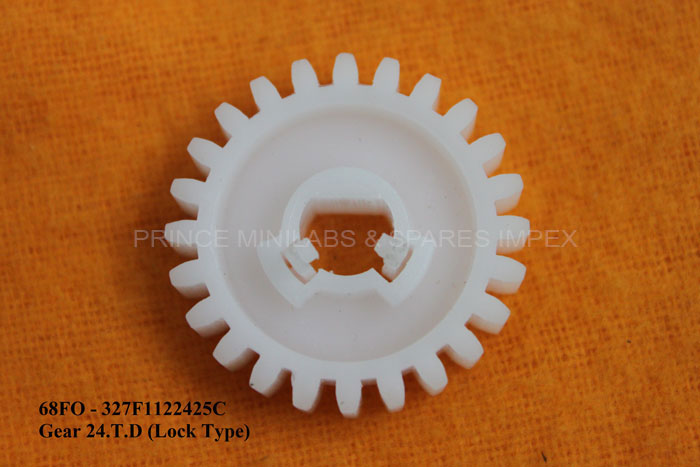

68.FO.

327F1122425C

GEAR(24.T.D.)LOCK TYPE

69.FO.

319H0057

SHAFT ( 330 )

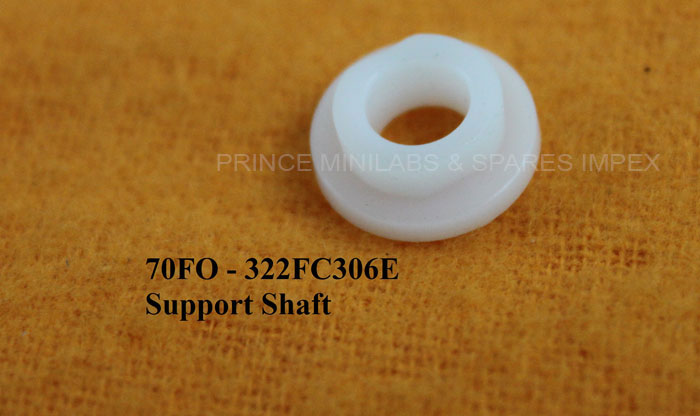

70.FO.

322FC306E

SUPPORT SHAFT  WHITE OD-14 HEIGHT 2+3

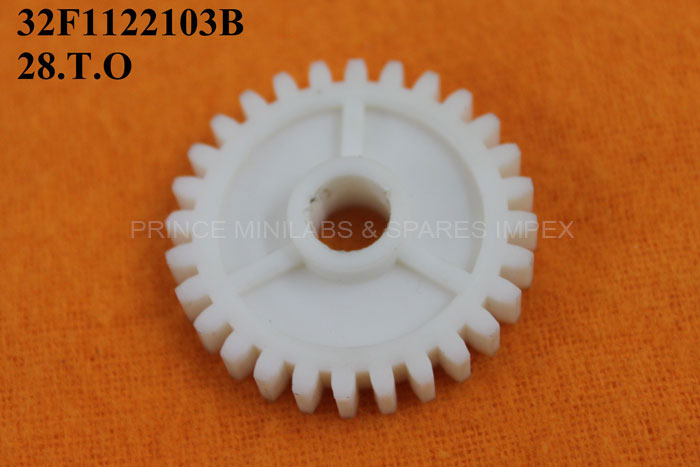

71.FO.

32F1122103B

GEAR SPUR (28.T.O.)

72.FO.

F327D10613210

GEAR 20.T.D. 10MM  ( 570 )

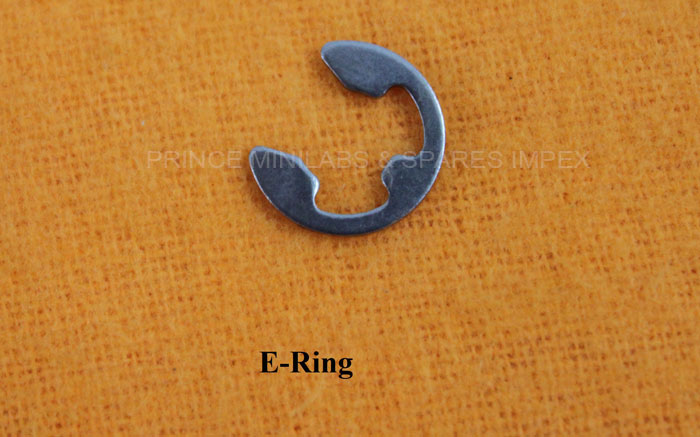

73.FO.

315S3000040

METAL LOCK (E RING) SMALL

74.FO.

360H0042E

HOUSING LEFT



360H0040E

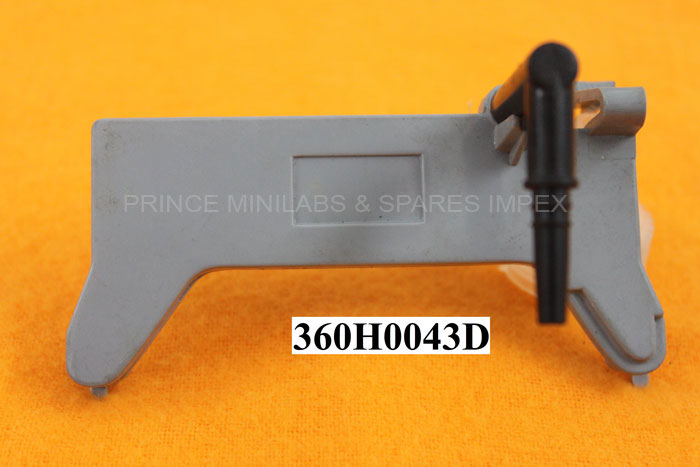

75.FO.

360H0043D

HOUSING RIGHT



360H0041D



76.FO.

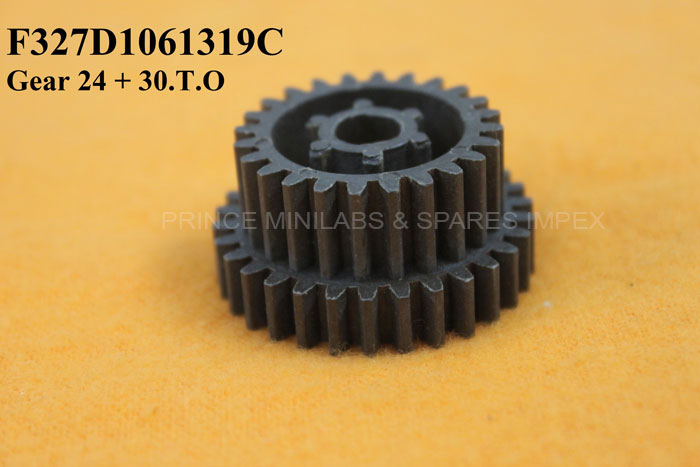

F327D1061319C

GEAR SPUR (24+30.T.O.)570 (ORIGINAL)





GEAR SPUR (24+30.T.O.)570

77.FO.

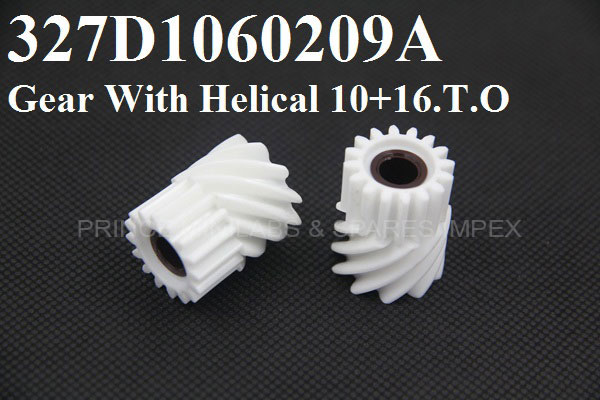

F327D1060209A

GEAR WITH HELICAL (10+16.T.O.)570

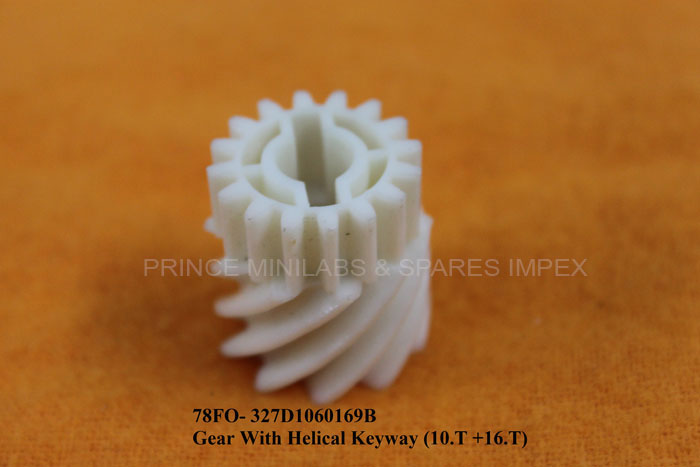

78.FO.

F327D1060169B

GEAR WITH HELICAL KEYWAY (10.T.+16.T.)570

79.FO.

F3270168C

GEAR SPUR - DRIER(30+35.T.D.)

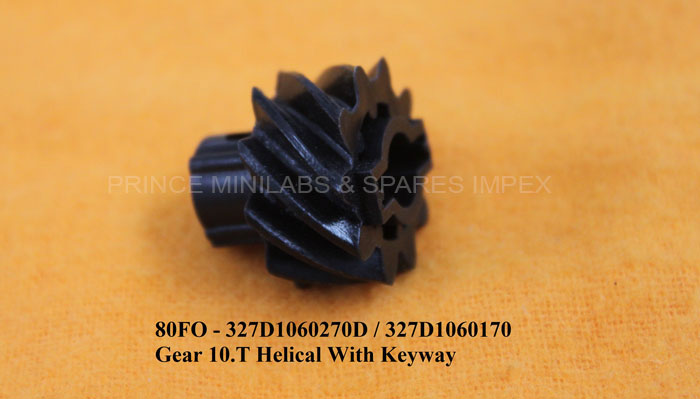

80.FO.

327D1060270D

10.T. HELICAL GEAR WITH KEY WAY (570)

327D1060170

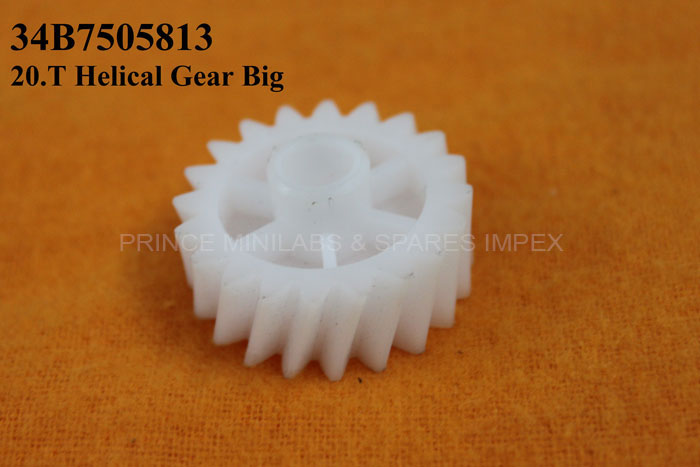

81.FO.

34B7505813

20.T. HELICAL GEAR BIG ( 350 / 370 ) 34MM

82.FO.

11BC889160

GEAR(14.T.O.)BRASS FOR CUTTER MOTOR

83.FO.

334C896445A

CLEANING ROLLER BIG

84.FO.

363C896536A

CLEANING ROLLER SMALL

85.FO.

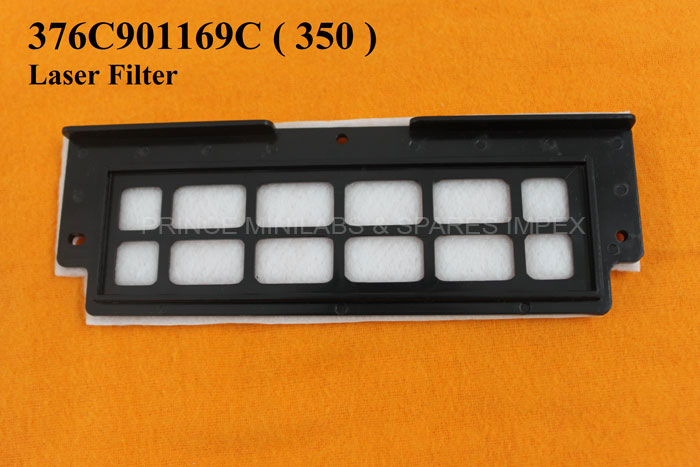

376C901169C

LASER FILTER 350

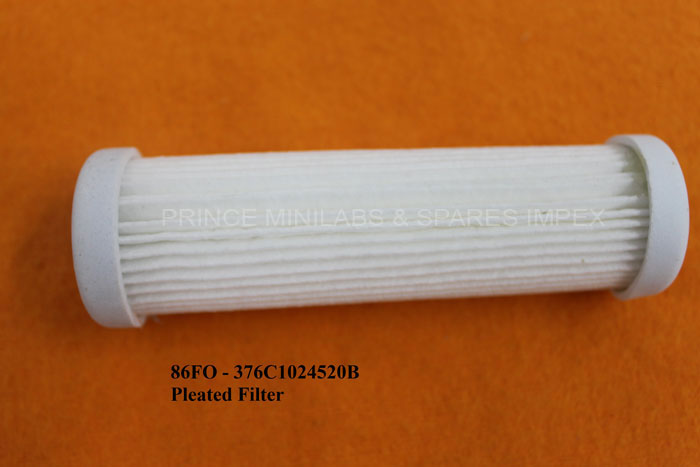

86.FO.

376C1024520B

FILTER(PLEATED) 570



327F0177C

GEAR SPUR

87.FO.

319H0057

SHAFT



327F11221038

GEAR SPUR



32FC3066

SUPPORT SHAFT

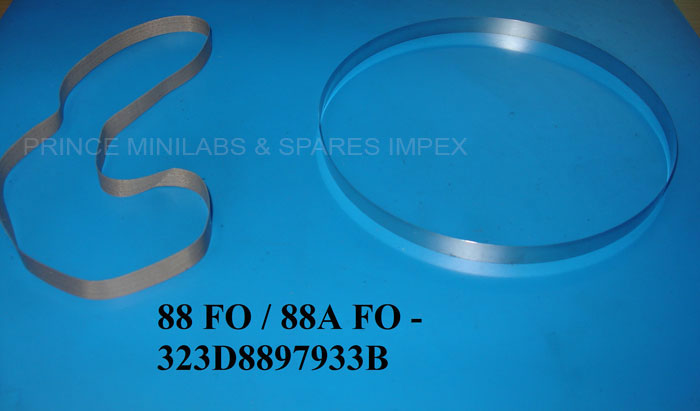

88.FO.

323D889733B

BELT  FLAT TEFLON

88.A.FO.

323D889733B

BELT FLAT S.S.

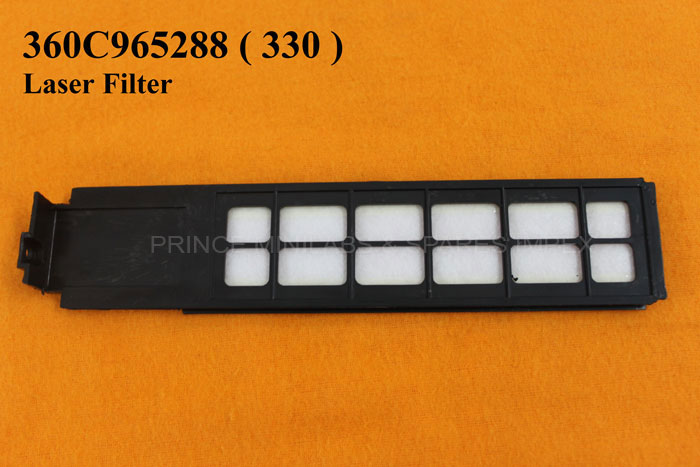

89.FO.

360C965288

LASER FILTER 330

90.FO.

T334H0243C

ROLLER  RACK WITH SOFT TOUCH  ( PLASTIC )

91.FO.

138D1058122B

MICRO FILTER (130 X 72 X 22.5) 550/ 570

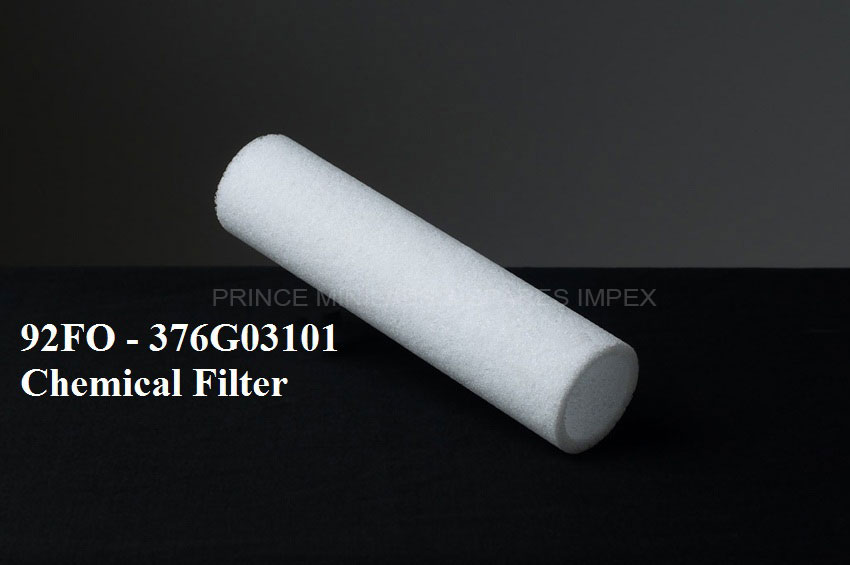

92.FO.

376G03101

FILTER CHEMICAL 330 / 350

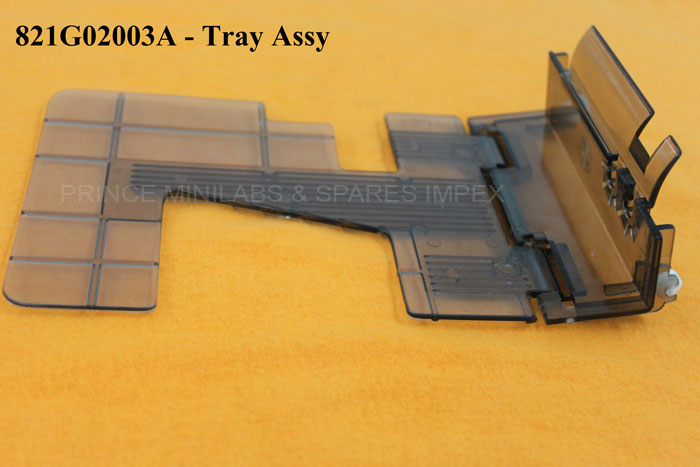

93.FO.

821G02003A

TRAY  ASSY

94.FO.

F363D889759

ROLLER(LAZER)

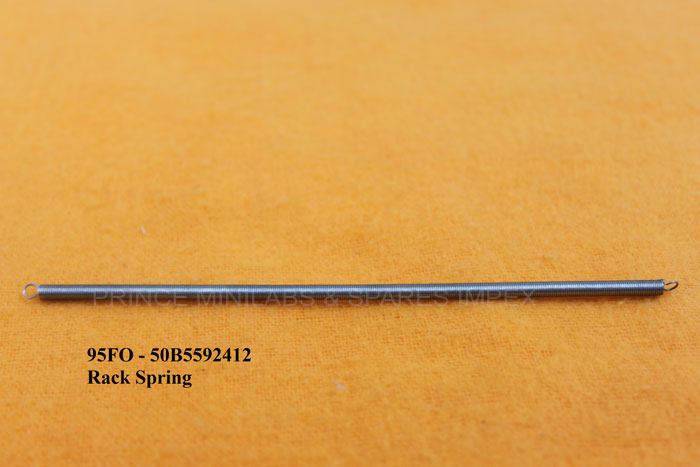

95.FO.

50B5592412

SPRING 127.MM

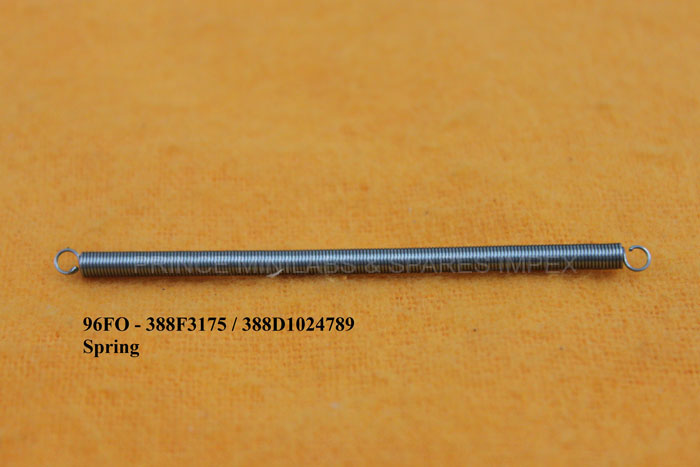

96.FO.

388F3175

SPRING (70.MM ) 330 / 340 / 350 / 370

388D1024789

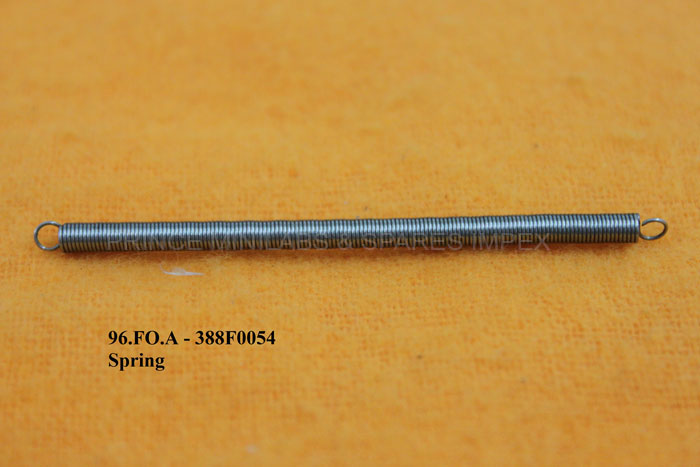

96.FO.A.

388F0054

SPRING (70.MM) 330 / 340 / 350 / 370

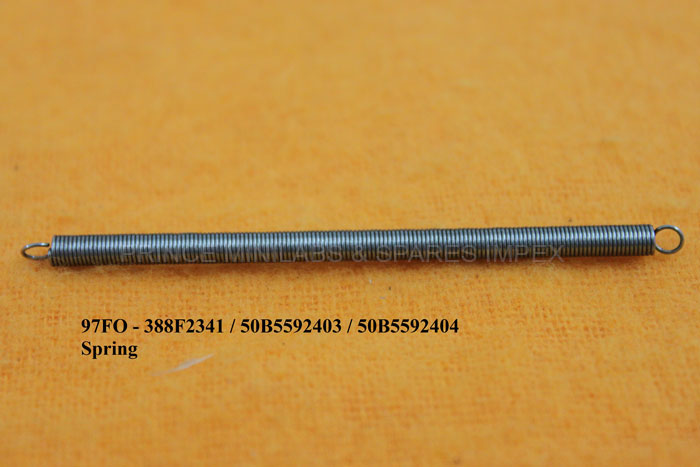

97.FO.

388F2341

SPRING 55.MM (330 / 340/350 / 370 )

50B5592403 / 4

98.FO.



HELICAL KEY WAY WITH STEP (570)  24.T.

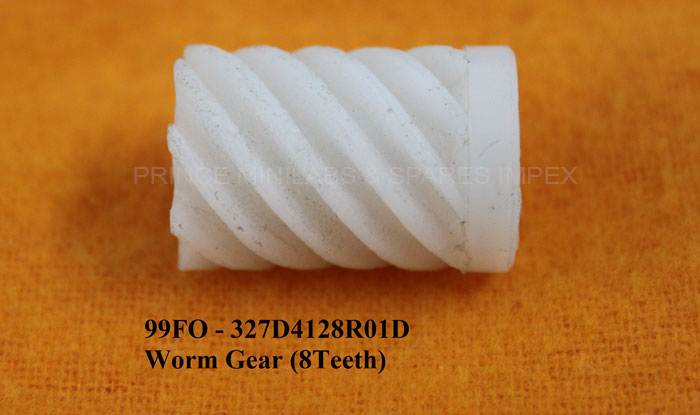

99.FO.

327B4128R01D

WORM GEAR (8 TEETH)

100.FO.

F327D1060172B

GEAR WITH RED BUSH 21.T.O.

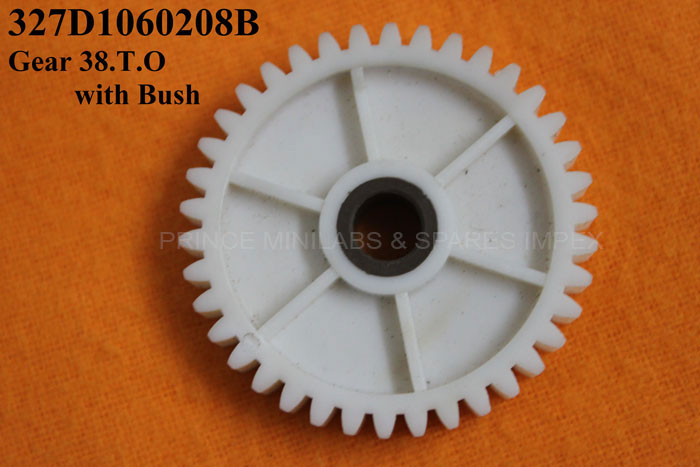

101.FO.

327D1060208B

GEAR WITH RED BUSH 38.T.

101A.FO.

327C1061589

GEAR WITH BROWN BUSH 31.T

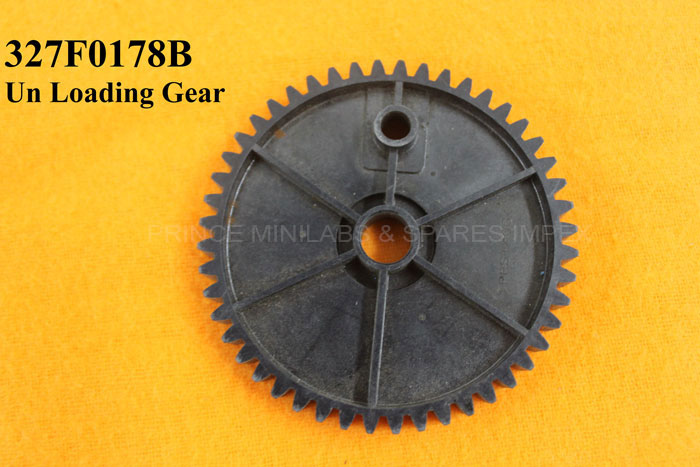

102.FO.

327F0178B

UNLOADING GEAR 48.T. O. ( 370 / 570 )

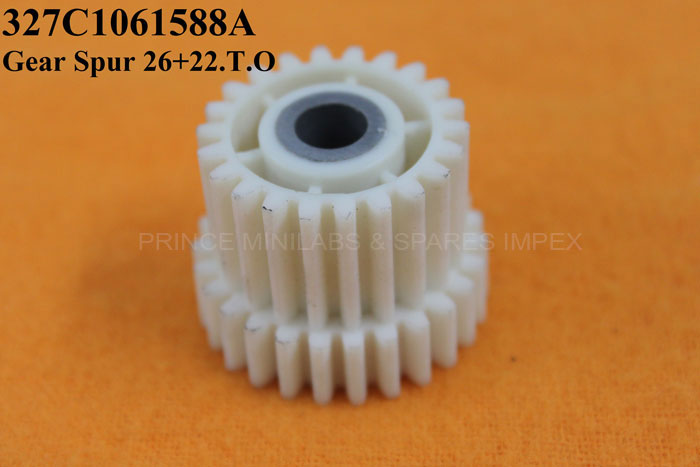

103.FO.

327C1061588A

GEAR SPUR  26 + 22.T.O.

104.FO.

327D1060179A

GEAR (HELICAL + SPUR) 15 + 24.T.

105.FO.

356F10146C

BRACKET

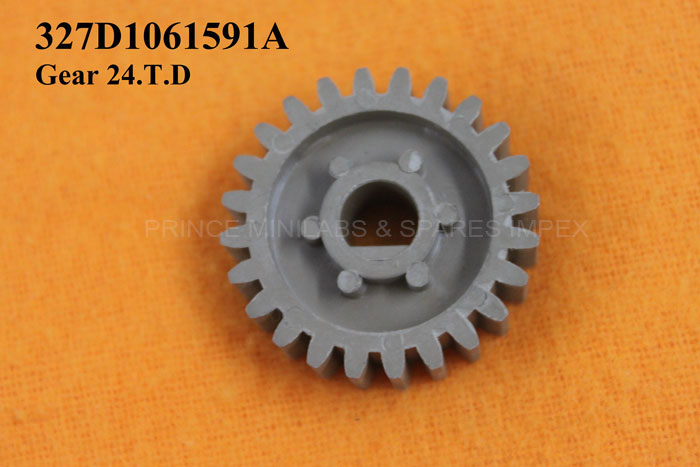

106.FO.

327D1061591.A

GEAR 24.T.D (570) (ORIGINAL)





GEAR 24.T.D (570)

107.FO.

322FY217.A.

SUPPORT SHAFT SMALL DRIER - BLUE

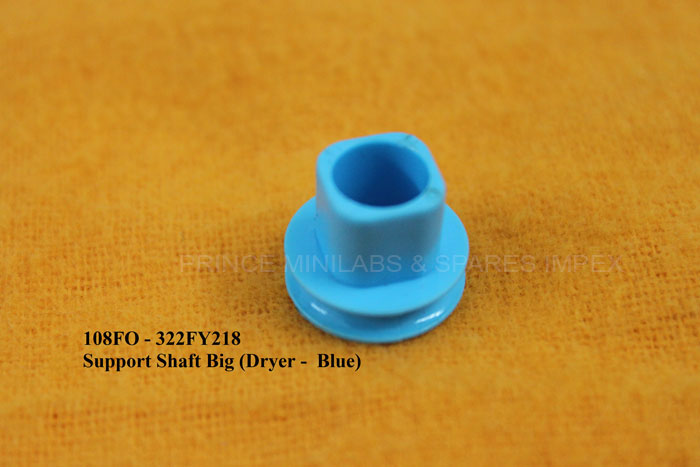

108.FO.

322FY218

SUPPORT SHAFT   BIG  DRIER -BLUE

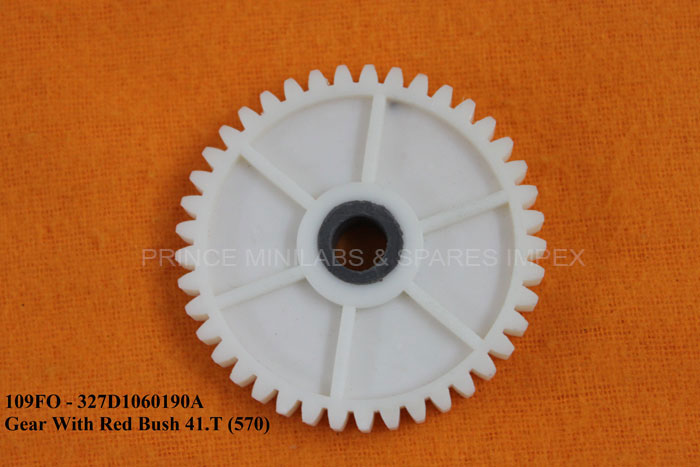

109.FO.

327D1060190A

GEAR  WITH RED BUSH 41.T. (570)

110.FO.

334C1061341

ROLLER (GREEN) (570)

111.FO.

334C1060076C

ROLLER (GREY) (570)

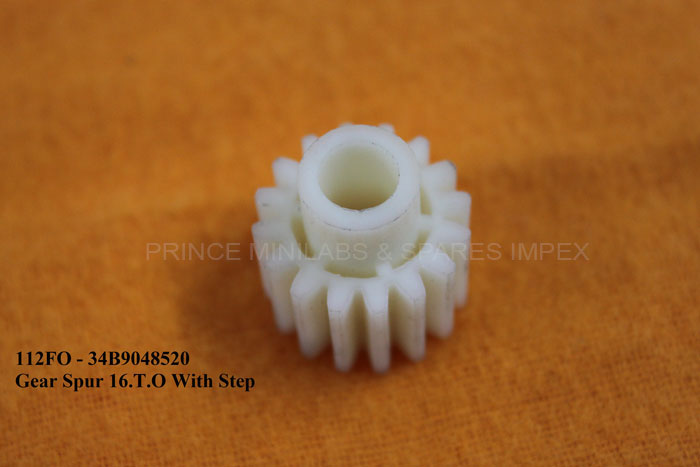

112.FO.

34B9048520

GEAR SPUR (16.T.O.WITH STEP)

113.FO.

350F5464A

COVER DOUBLE HOLE

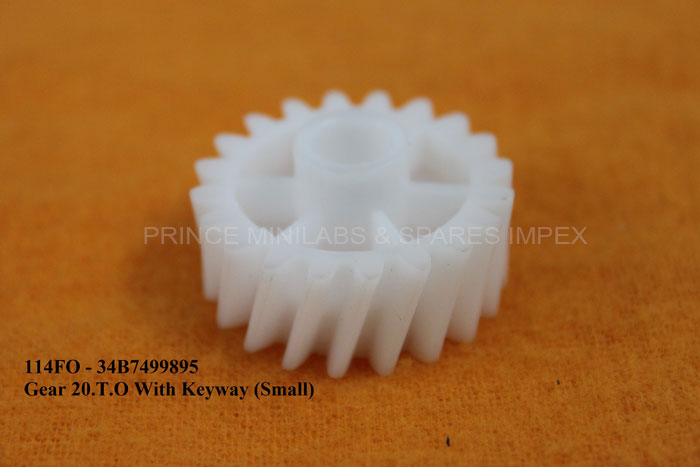

114.FO.

F34B7499895

GEAR 20.T.O. WITH KEY WAY & STEP
SMALL GEAR(32.5MM)

115.FO.

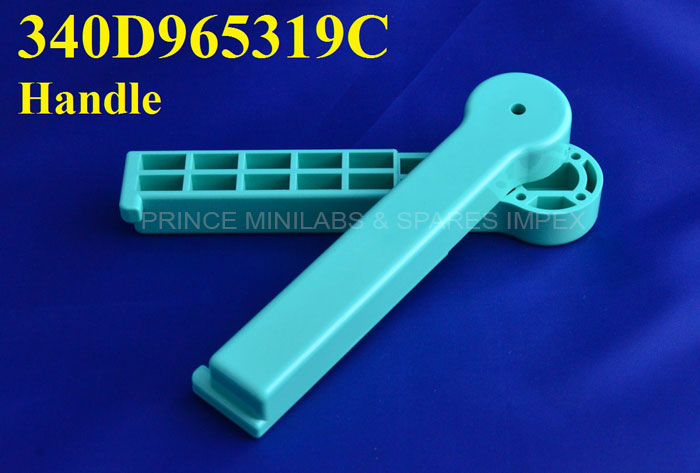

340D965319C

HANDLE  330

116.FO.

334C966794A

RUBBER ROLLER (330) BLACK O & D

117.FO.

360C1059086

LASER FILTER (570)

118.FO.

30A7506070

ROLLER  PLAIN (330) PLASTIC  OD 15MM

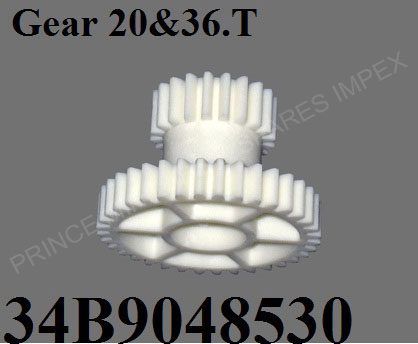

119.FO.

E34B9048530

GEAR  SPAM WITH SLOT (20T & 36T)

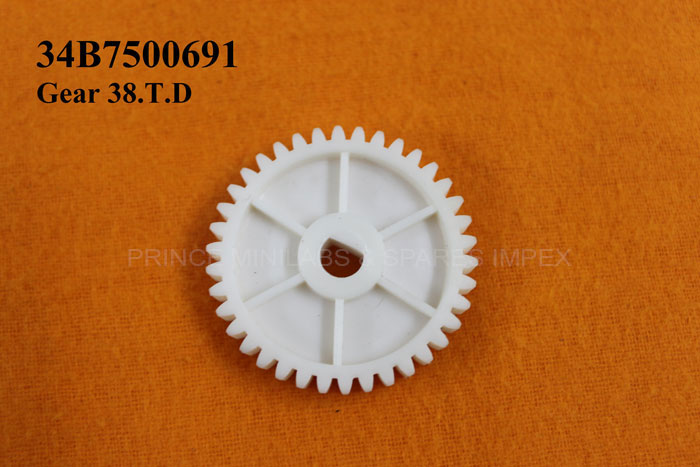

120.FO.

34B7500691

GEAR SPUR 38.TD.

122.FO.

E374D895509C

AIR FILTER SMALL

123.FO.

374D890211C

AIR FILTER BIG

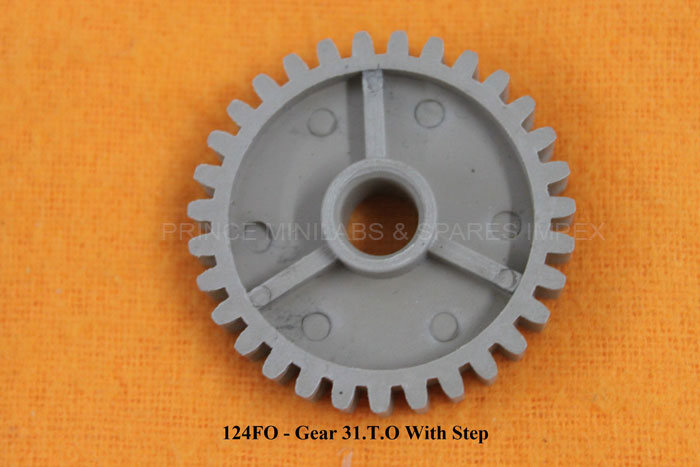

124.FO.



GEAR 31.T.O. WITH STEP (ORIGINAL ) (570 )



GEAR 31.T.O. WITH STEP ( 570 )

125.FO.

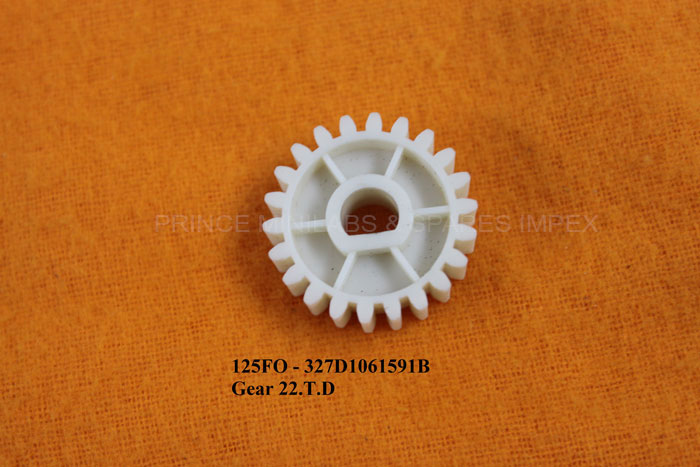

F327D1061591B

GEAR SPUR (22.T.D.) 10MM (550) (ORIGINAL )





GEAR SPUR (22.T.D.) 10MM (550)

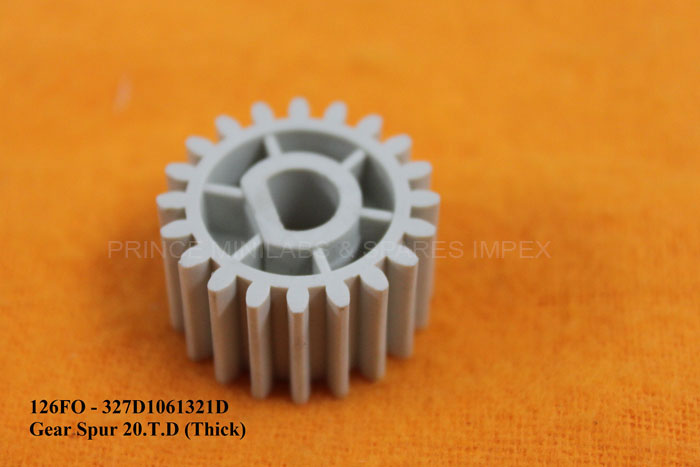

126.FO.

F327D1061321D

GEAR SPUR (20.T.D.) THK-15MM  (570) (ORIGINAL)





GEAR SPUR (20.T.D.) THK-15MM  (570)

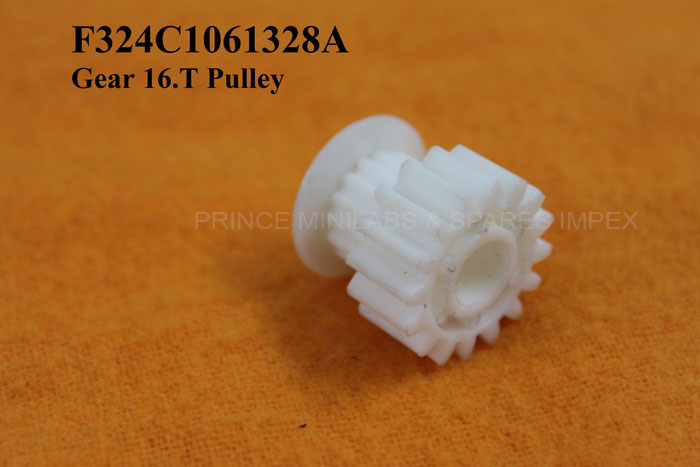

127.FO.

F324C1061328A

WHEEL (BELT) GEAR 16.T WITH 16.T. PULLEY  (570 )

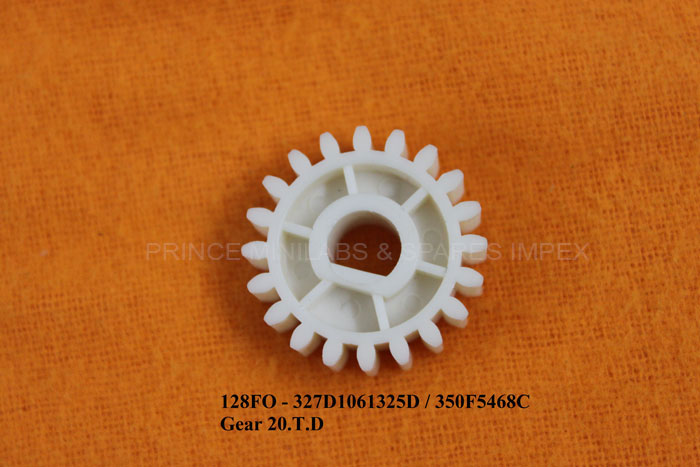

128.FO.

F327D1061325D

GEAR  20.T.D. (550)  (ORIGINAL )



350F5468C

GEAR  20.T.D. ( 550 )

129.FO.



COVER

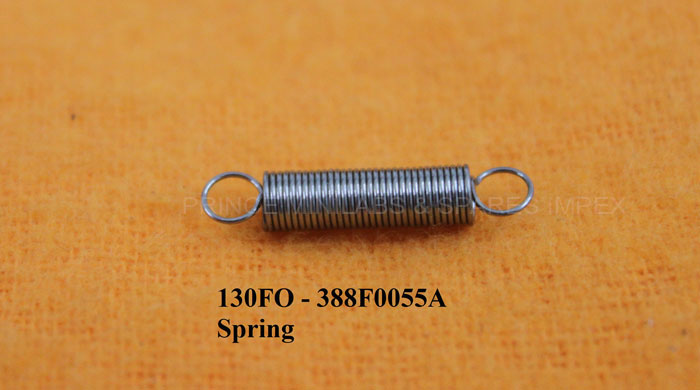

130.FO.

388F0055A

SPRING TENSION 20MM

131.FO.

32B8771630

SHAFT  FOR ROLLER )  330 ) ( DOUBLE  D )

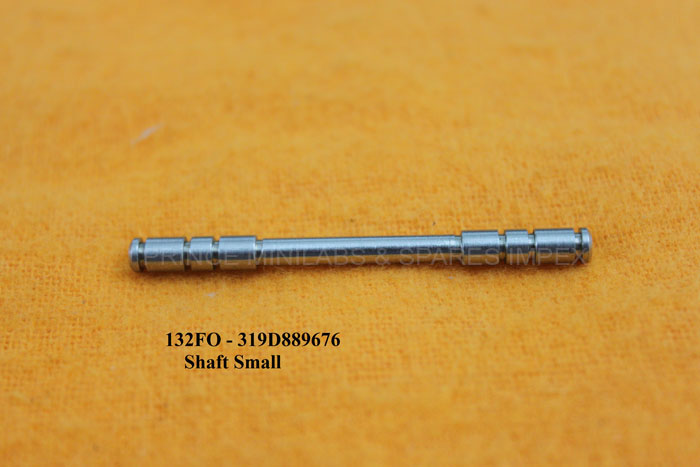

132.FO.

319D889676

SHAFT ( 51MM )  ( 350 )

133.FO.

319D889675

SHAFT  ( 55MM ) ( 350 )

134.FO.



STOP RING RED

135.FO.

341G03105A

PIPE FILTER SMALL ( KNOB - 370 / 330 )

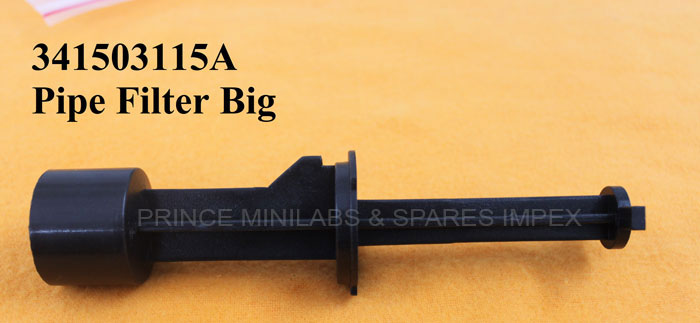

136.FO.

341503115A

PIPE FILTER BIG  ( KNOB ) 570

137.FO.

F334D965392A

ROLLER  ( 330 )

138.FO.

334D1056421

MAGAZINE DRIVE ROLLER  ( 2 BUSH )  ( 570 )

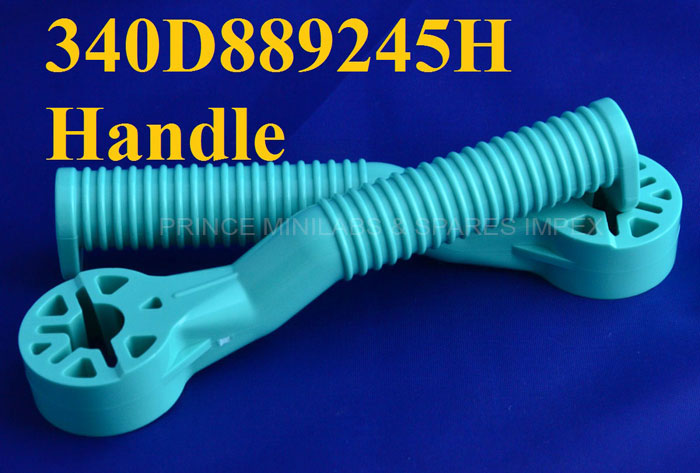

139.FO.

340D889245H

MAGAZINE HANDLE  ( 350 )

140.FO.

bgcolor="#F4FAFF"

334C967032A

DOTTED ROLLER  ( 330 )

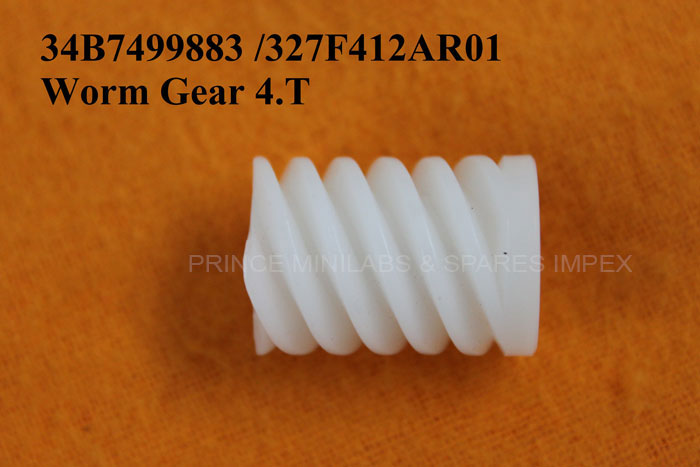

141.FO.

34B7499883

WORM GEAR ( 4 TEETH )

327F412AR01

142.FO.

F334C980811K

ANM ROLLER ( 330 )

143.FO.

334C967036A

ROLLER PLASTIC  ( 330 )

144.FO.

334C966206C

ROLLER PLASTIC LONG ( 330 )

145.FO.

334C966299C

ROLLER PLASTIC LONG ( 340 )

146.FO.

334C1025013

ROLLER RUBBER WHITE  CROSS OVER (340)

147.FO.

319C1024788

SHAFT (340) PS.NO.6 CROSS OVER

148.FO.

34B7500691

GEAR  28.T.D. ( 330 )

34B7504872

149.FO.

319D966253A

SHAFT FOR ROLLER ( 330 ) DOUBLE D

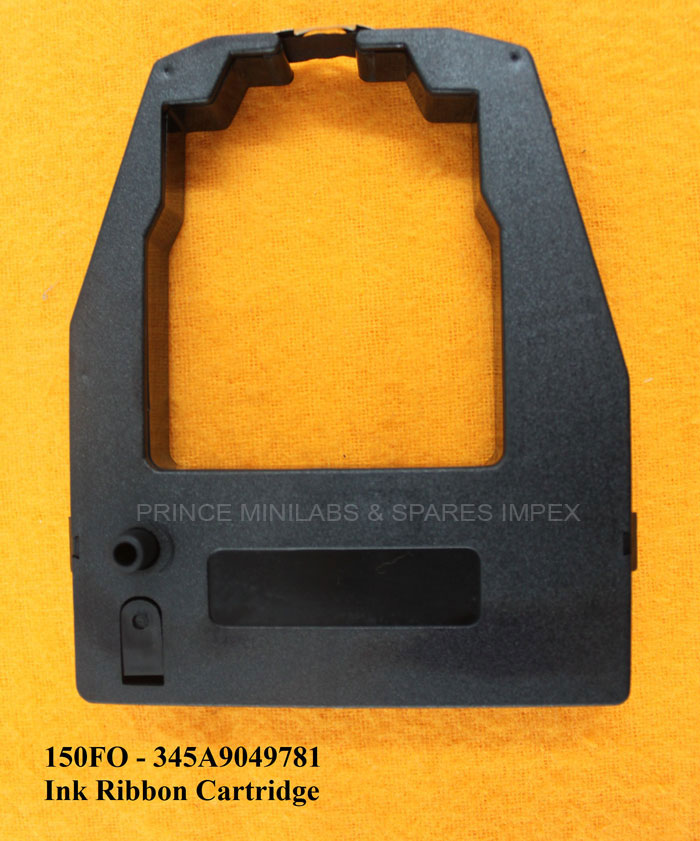

150.FO.

345A9049781

CASETTE INKRIBBON

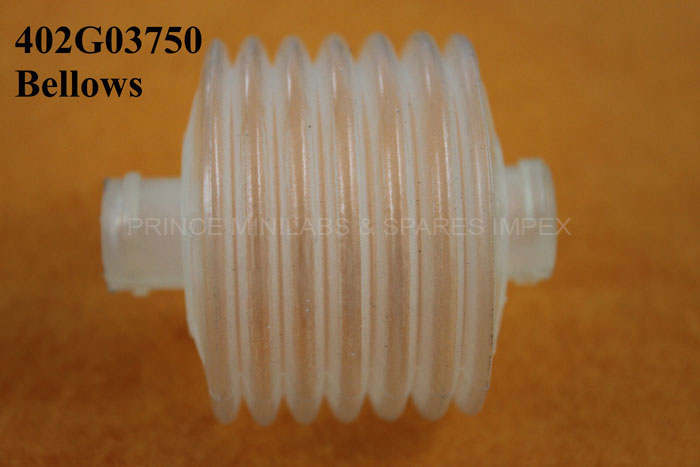

151.FO.

402G03750

BELLOWS

152.FO.

334H0251

ROLLER  PLASTIC

153.FO.

334H0252A

ROLLER RUBBER

154.FO.

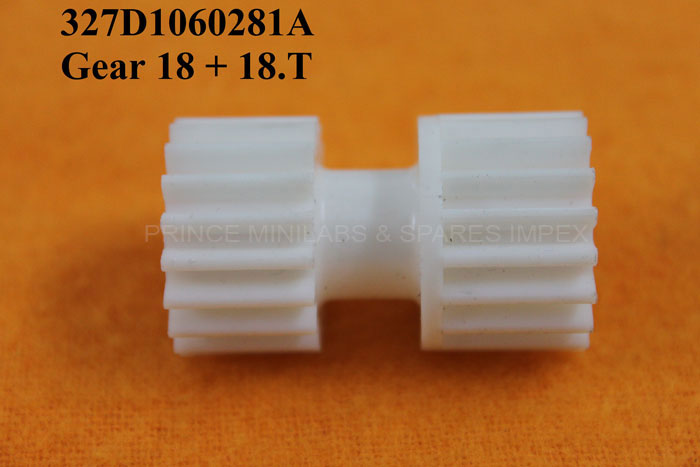

327D1060281A

GEAR (DOUBLE )  18 + 18 ( 570 )

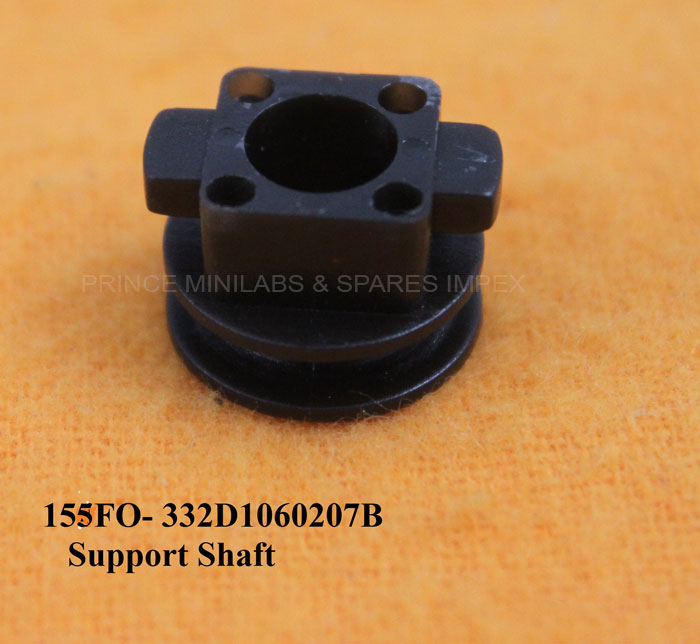

155.FO.

F332D1060207B

SUPPORT SHAFT (570) (ORIGINAL )

SUPPORT SHAFT (570)

156.FO.

F31B7499922

SUPPORT SHAFT (ORIGINAL)

322FC366

SUPPORT SHAFT

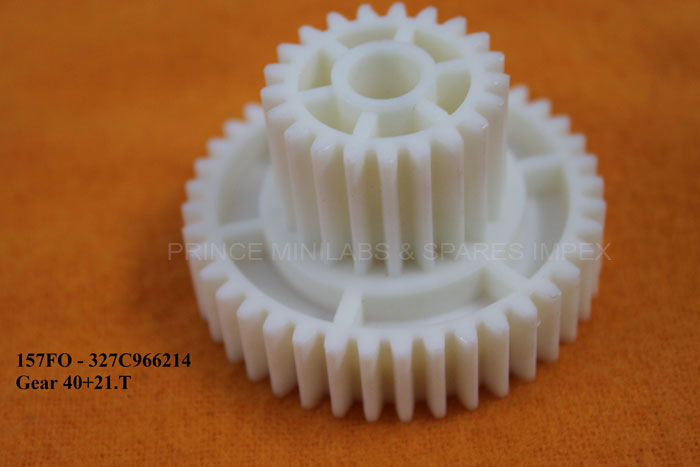

157.FO.

327C966214

GEAR, TORQUE LIMITER ( 40 + 21 ) ( 330 )

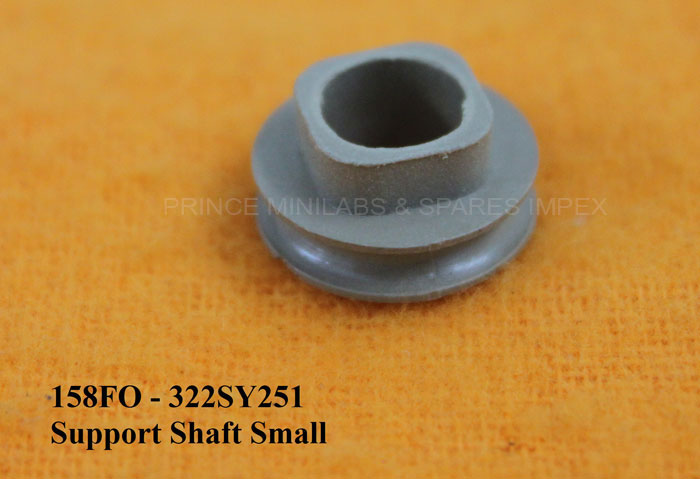

158.FO.

322SY251

SUPPORT SHAFT ( BLUE ) SMALL

159.FO.

334H0248

ROLLER  ( DRIER BELT )

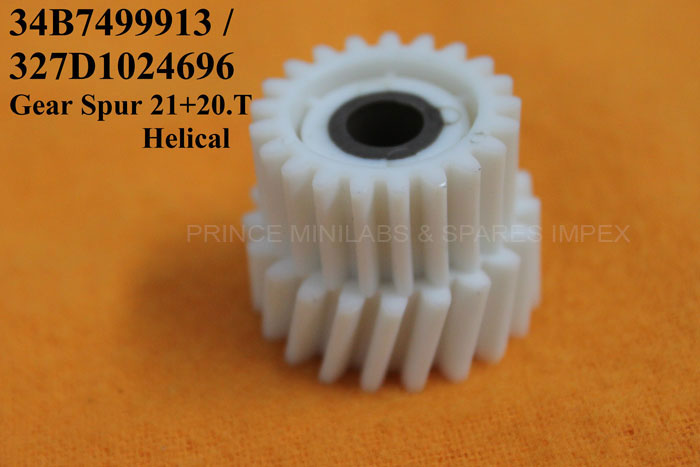

160.FO.

34B7499913

GEAR SPUR (21+20.T.) HELICAL WITH
BUSH ( 330 / 340 )

327D1024696

161.FO.

F34B7505861

GEAR  15.T.D. (340 )

162.FO.

327F01698

GEAR SPUR 24.T.O.  HEIGHT 2505 BORE 10MM

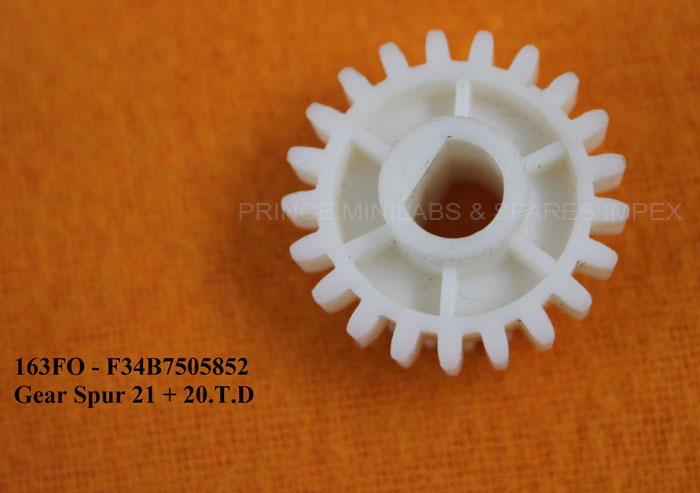

163.FO.

F34B7505852

GEAR SPUR ( 21 + 20T.D.)

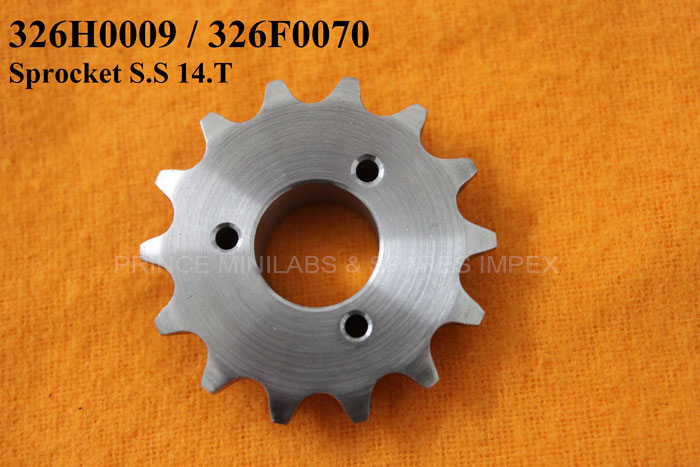

164.FO.

326F0070

SPROCKET (S.S.14.T.O.) SMALL

326H0009

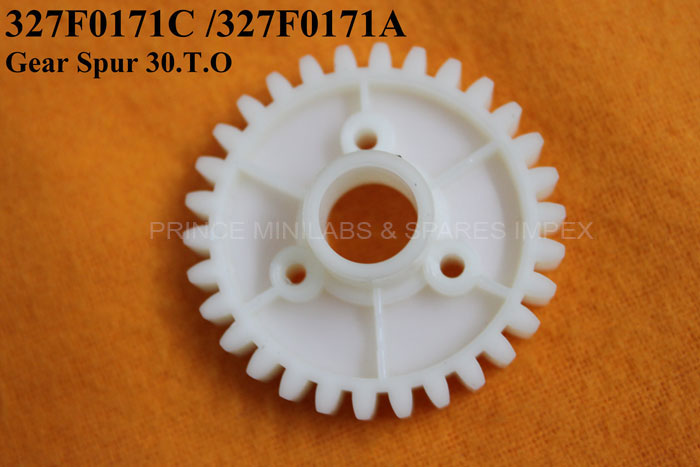

165.FO.

327F0170C

GEAR SPUR (30.T.O.)

327F0171A

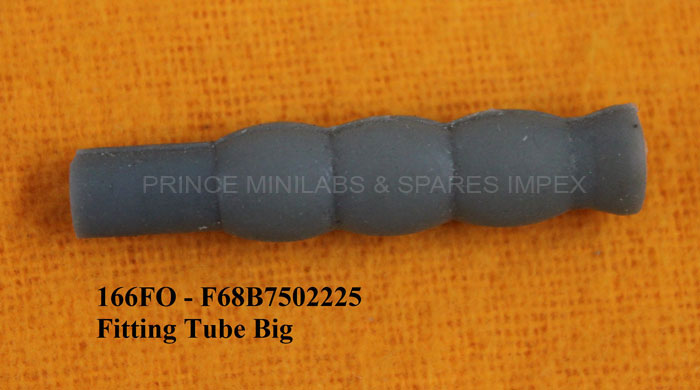

166.FO.

F68B7502225

FITTING TUBE  ( BIG ) (330)

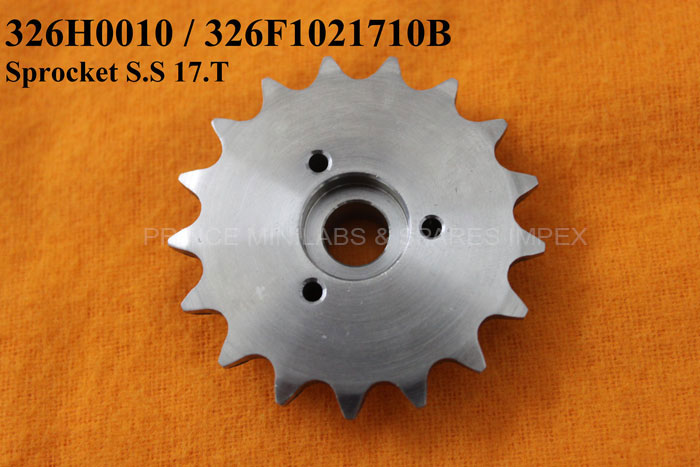

167.FO.

326H0010

SPROCKET S.S. 17.T.O. METAL ( BIG)

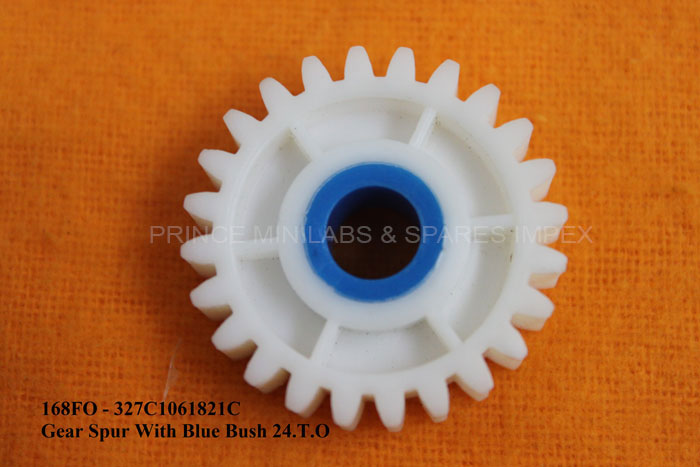

168.FO.

F327C1061821C

GEAR SPUR ( 550 ) WITH BLUE BUSH 24.T.O.

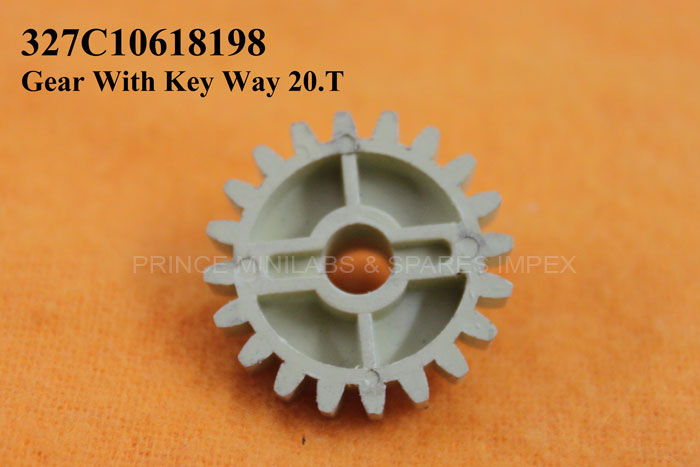

169.FO.

F327C10618198

GEAR SPUR 20.T. ( 550 ) WITH KEYWAY STEP

327D1061819A

170.FO.

F327C1024765A

GEAR SPUR ( 330 ) 16.T.O. BLUE BUSH

171.FO.

324H20016A

WHEEL, TIMING BELT

172.FO.

F334C1024684C

ROLLER WHITE GROVE (330)

173.FO.

323S0005

BELT - FLAT

174.FO.

319N2579A

PIN 3MM X 13MM

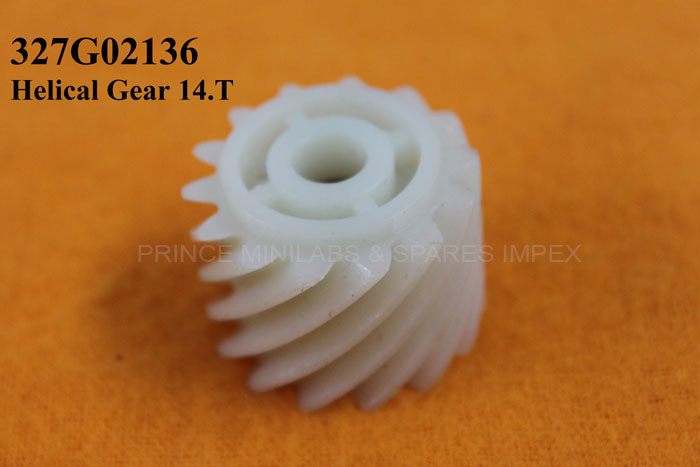

175.FO.

327G02136

HELICAL GEAR 14.T (390)

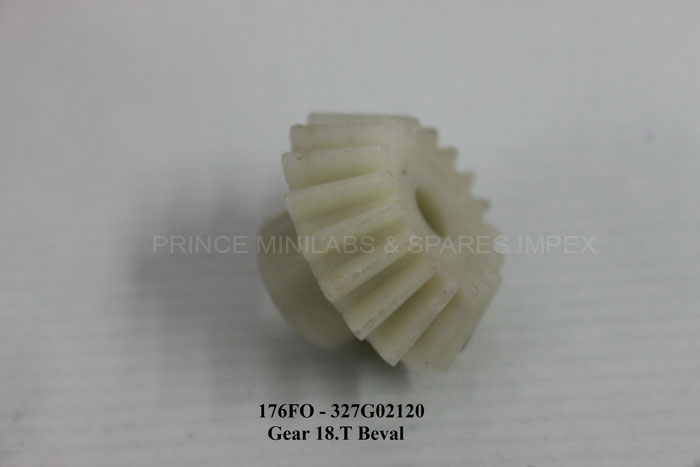

176.FO.

327G02120

18.T. BEVAL GEAR

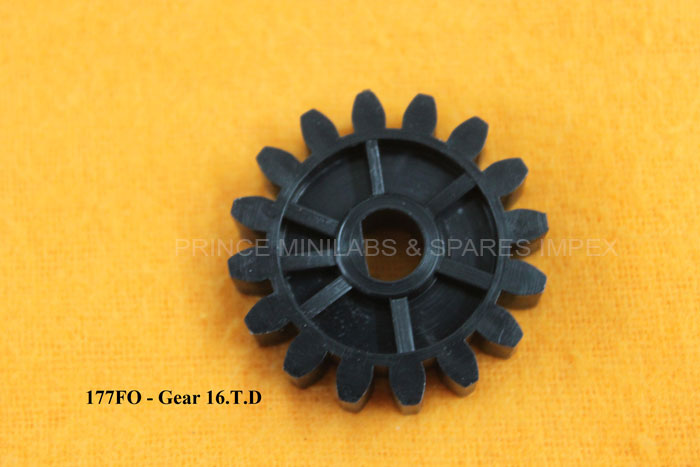

177.FO.



16.T.D. GEAR

178.FO.

362G03101

GUIDE  ( FOR CHAIN )

179.FO.

F334C1024683

ROLLER (30MM) WITH RUBBER SLEEVE (340)

180.FO.

F334C1024685

ROLLER BROWN - FIBRE  ( 340 )

181.FO.

F30A8084890

ROLLER WHITE - PLAIN ( 340 )ONE SIDE 'D' & 'O'

182.FO.

326G02078

SPROCKET ( 36.T. BEVEL GEAR )

183.FO.

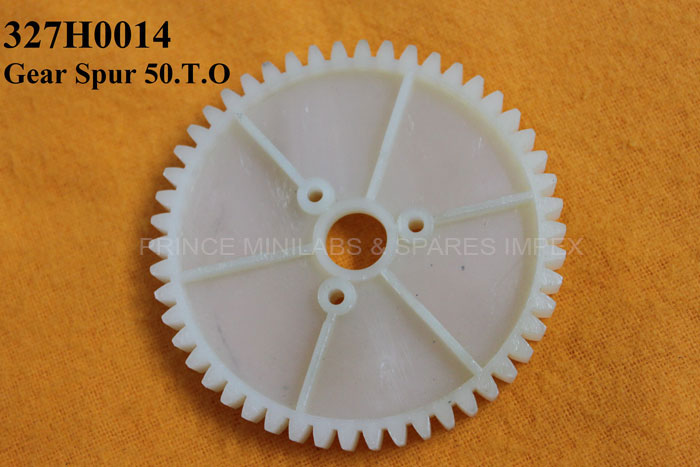

327H0014

50.T.O. GEAR SPUR

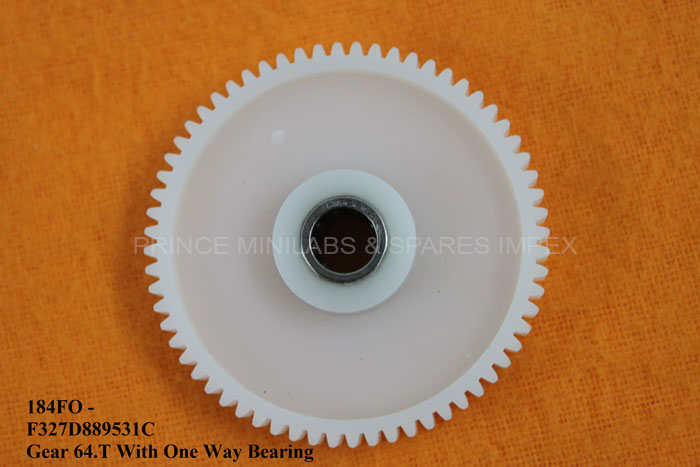

184.FO.

F327D889531C

64.T. GEAR SPUR WITH ONEWAY BEARING (340)

185.FO.

334C1060206

MIDDLE ROLLER (D/D0 ( RACK ) 570

186.FO.

374F2293A

ONE WAY VALVE

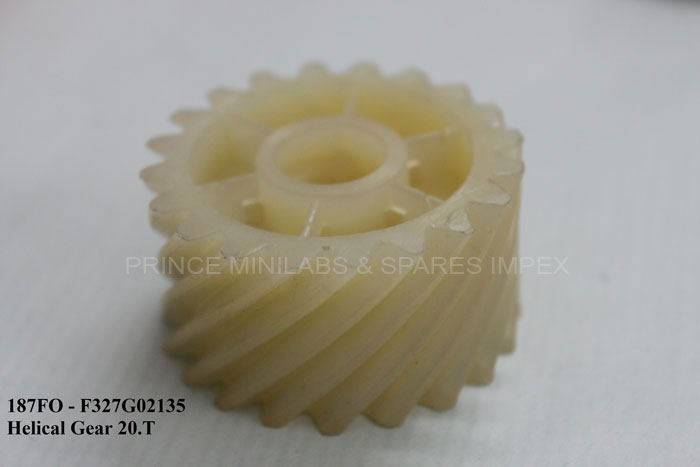

187.FO.

F327G02135

HELICAL GEAR 20.T. ( 390 )

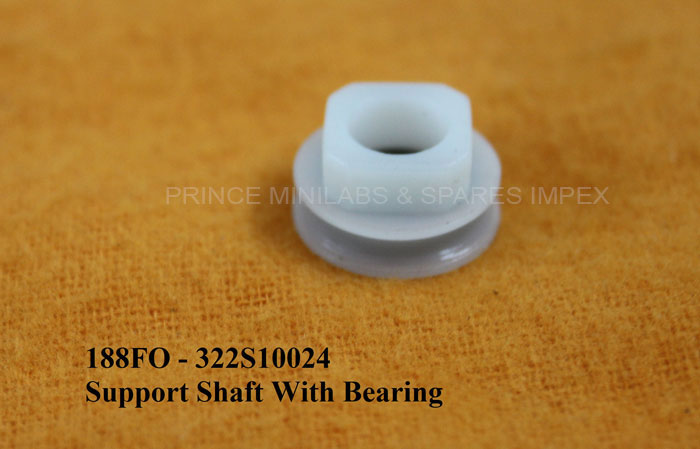

188.FO.

322S10024

SUPPORT SHAFT WITH BEARING

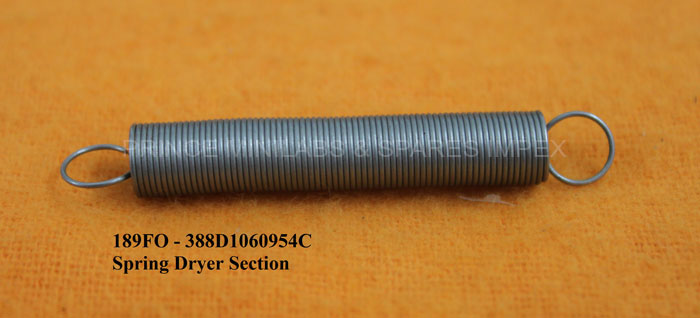

189.FO.

388D1060954C

SPRING (550) DRYER SECTION

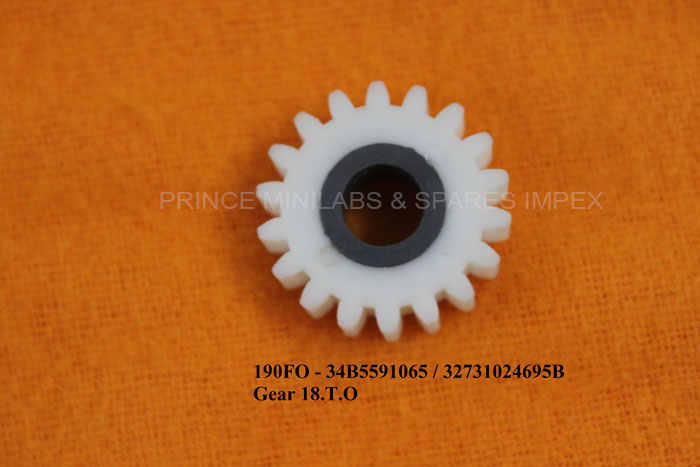

190.FO.

34B5591065

GEAR WITH BROWN BUSH(18.T.O.)340 RACK

327C1024695B

191.FO.

334C1060018C

ROLLER BROWN - FIBRE  (550/570) RACK

192.FO.

334C1060026C

ROLLER SOFFT (550/570) RACK

193.FO.



S.S. SPROCKET 17.T.O. & GEAR ASSY (FULL SET) BIG

194.FO.



S.S. SPROCKET 14.T.O.& GEAR ASSY (FULL SET) SMALL

195.FO.

363H0147H

GUIDE ( P1 CROSS OVER RACK ) 350/370

196.FO.

363F4244G

GUIDE ( P2 CROSS OVER RACK ) 350/370

197.FO.

323F1026C

BELT FLAT (350/370)LARGE SIZE EXPUSION SECTION

198.FO.

388D889425A

SPRING SMALL (TRANSPORT SECTION)350/370

199.FO.

388D889427A

SPRING BIG (TRANSPORT SECTION)350/370

200.FO.

334C967030A(Old.No.)

ROLLER C WITH SOFT TOUCH (340)

334C1025023(New.No.)

201.FO

DOUBLE GEAR 26+35

202.FO



SUPPORT SHAFT SMALL 390

203.FO.



SUPPORT SHAFT BIG

204.FO.

34B7504281

SPROCKET 10.T

34B7500650

205.FO.

334D1060262

ROLLER ( RING RUBBER )

206.FO.

323F1025C

BELT BIG (1SET - 4BELT)

207.FO.

323F1026C

BELT FLAT SMALL (1SET - 4BELT)

208.FO.

31B7506592

SUPPORT SHAFT INNER ASSY BLACK SMALL (330)

209.FO.

34B7499722

GEAR 20.T.O (330)

210.FO.



DRYER SECTION BUSHING BLACK



    Gallery
